1967 Autodynamics D4-A Mark IV "Purple Patch Motorsports" Complete RACE- READY FVee - SOLD

F1 Authentics 8

This is now SOLD. Search for similar items.

Description:


Ray Caldwell created Autodynamics in 1962. His first FVee (D1-Mark I) was ready for the 1964 SCCA season, and Caldwell drove it to a SCCA national championship. He utilized a Volkswagen 1200cc (1192 cc) engine, 4-speed transmission with trailing link front suspension and rear swing axle. The body was constructed from fiberglass and rested on a space frame chassis.In 1967, the D-4 was introduced, and it had a new chassis design and improved suspension components. The D4-A was made available for customers who required more room in the cockpit. A total of 148 of these more accommodating FV chassis were delivered by Autodynamics. The #067 Autodynamics D4-A Mark IV is an excellent example of a totally and properly restored vintage legal Formula VW race car including: reconditioned, damage-free chassis, rebuilt and balanced VeeTech race engine ,total trans axle assembly reconditioned,new front/rear brake assembly with new clutch and brake hydraulics, new gauges and wiring harnesses, new fuel cell bladders, new 5-point Corbeau Camlock SFI 16.1 seat belt harness, fresh Hoosier FV spec race tires, proper suspension and alignment adjustment. Absolutely race-ready for 2019 season !! Will assist for domestic or international shipment.


History

The Purple Patch Motorsports #067 FV has been recently (2017-18) professionally and meticulously restored. There are two continuous SCCA log books with over 30 events (drivers schools and regional races) from 10/72 until 11/82. Participating events listed were Watkins Glen, Pocono, Summit Point, Lime Rock, and Bryar. First vintage race BEFORE restoration was 9/08 VIR event with a DNS. There have been five vintage events since completing the 2017-2018 restoration - 7/18 PVGP Pittrace ,9/18 Put-in-Bay Reunion , 11/18 VDCA Historics @ Road Atlanta and 12/10 VDCA RRR Season Finale and VDCA 17th Annual Wild Hare .

Competition History

7/18 PVGP Historics 4th FV Group 1. 9/18 Put-in-Bay Reunion Race -2nd FV, Group 4 , 11/10 VDCA Historics 3rd FV Group 1 , 12/10 VDCA RRR Season Finale 6th FV Group 1 , 04/19 VDCA VIR 3rd FV Group 1
Performance Data

  • SVRA & VDCA Group 1
  • 830 lbs
  • VIRGINIA INTERNATIONAL RACEWAY
Engine
  • VeeTech by Jim Wallschlaeger, rebuilt by Baucom Motorsp
  • Volkswagen
  • Air-cooled horizontally opposed 4 cylinder
  • 1192 cc
  • est.55 -57
  • Solex 28 pci with modified intake as per SCCA FV specs by Michael Kochanski
  • VW polished intake at 29 mm exhaust at 33 mm
  • Type III
  • VW as per SCCA specs
  • VW min wt 16#
  • VW as per SCCA specs
  • VW cast aluminum with steel inserts
  • VW
  • VW as per SCCA specs
  • VW as per SCCA specs
  • VW 180 mm
  • VW 6.25# min
  • VW 12# min
  • Roxanne 4-2-1 collector
  • ~ 6.5 hrs
  • 5
  • Restored chassis , fresh VeeTech engine & Bertolucci transmission
Fuel System


  • Integrated into driver's seat
  • 2018 RCI safety foam
  • 3 gals.
  • VW Mechanical
  • 98 Octane min
Oil/Water System

  • wet oil sump and crankcase
  • stock and remote
  • engine - rear
Electrical System

  • VW Petronix drop-in ignition trigger module
  • VW generator
  • Odyssey 12V dry cell
Transmission

  • Volkswagen
  • VW 4-speed w/ reverse
  • 1st - 3.8;2nd - 2.06; 3rd - 1.26; 4th - 0.89
  • Autodynamics right hand design
  • Working 16 blade fan w/ shroud
  • Reconditioned rear axle, brake assembly/trans w/ new synchronizers/bearings by Bertolucci Racing
Rear End

  • VW
  • VW
  • VW
  • 4.375 short box
  • VW
  • VW
  • VW
  • Totally reconditioned by Bertolucci Racing
Body

  • Purple/Black
  • AMC Jeep
  • Very good
  • Chassis restoration completed March 2018 by Dave Bane, Skydusky Racing
Chassis

  • Tube frame with semi roll cage
  • Autodynamics
  • Mild steel tubing
  • Very good
  • Very good
  • Std VW tracking link H-beam
  • Std VW swing axle
  • Front tube type, rear telescopic shocks with coil springs and Z type anti roll bar
  • VW stock '65 front, '67 rear
  • VW stock
  • 15 X 4.5
  • Hoosier TD front 120-590 -15/rear 135-620-15
Interior

  • Black
  • Aluminum/Steel

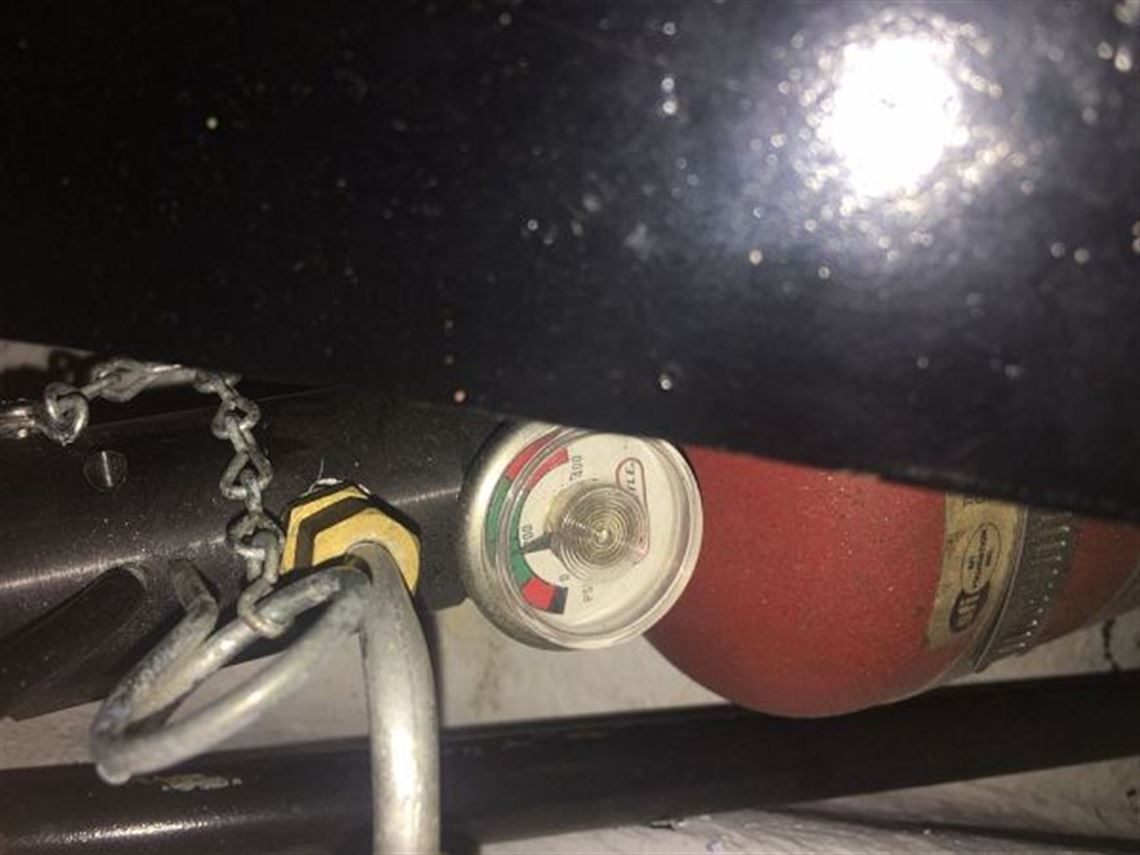

  • Firebottle 5# FE 36 w/ two nozzles
  • 2018 Corbeau Camrock 5 point seat belts
  • VDO Cockpit Royale
  • Custom race quick release type
  • New/excellent oil temp/pressure, water temp, 8K tachometer
Spares

  • MyLaps X 2 direct wire transponder with 2 yr. subscription 2/18-2/20
  • 4 spare 15 X 5.5 wheels
  • MUST SELL ASAP - ACQUIRED SECOND RACE CAR
