Description:

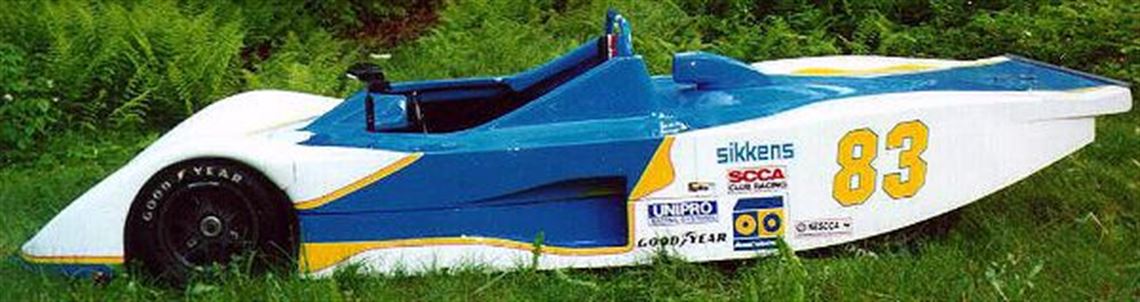

The latest SR-71 chassis has been the fastest Sports 2000 car at every
Run-offs it has attended. (Simmons, Gnazzo, and Johnson at Road
Atlanta.) Certainly some of this speed came from Steven Johnson serving
as race engineer for each of these events; However, Steven is also the
mastermind behind this chassis' design: one which typically utilizes the
Lola 598 as its basis. Although modifications include minor alterations
to the tub and front suspension geometry, the chassis' major superiority
comes from a thorough redesign of the car's rear half. Additional
custom valving of Koni shocks, and significant aerodynamic modifications
contribute further to the package. The primary objective of the
chassis' structural design is to provide an incredibly rigid platform
for the suspension to work from. this allows the use of very soft
springs, and gains the requisite mechanical grip. Other cars add spring
rate to compensate for inadequate structural integrity, and sacrifice
both mechanical grip and "feel." With the Swift, this is compounded by
the body’s substantial inability to generate adequate downforce.

History

This particular car was the last SR-71 built. Ed Breault has
campaigned the car in the Northeast for the last few years.


Competition History

Numerous National wins in prior years. It was not raced last year.


Engine

• strong Quicksilver Motor

• freshened by Kent Jones five races ago

• Hi Tech exhaust


Fuel System

• SCCA cell


Electrical System

• Stack recording tach

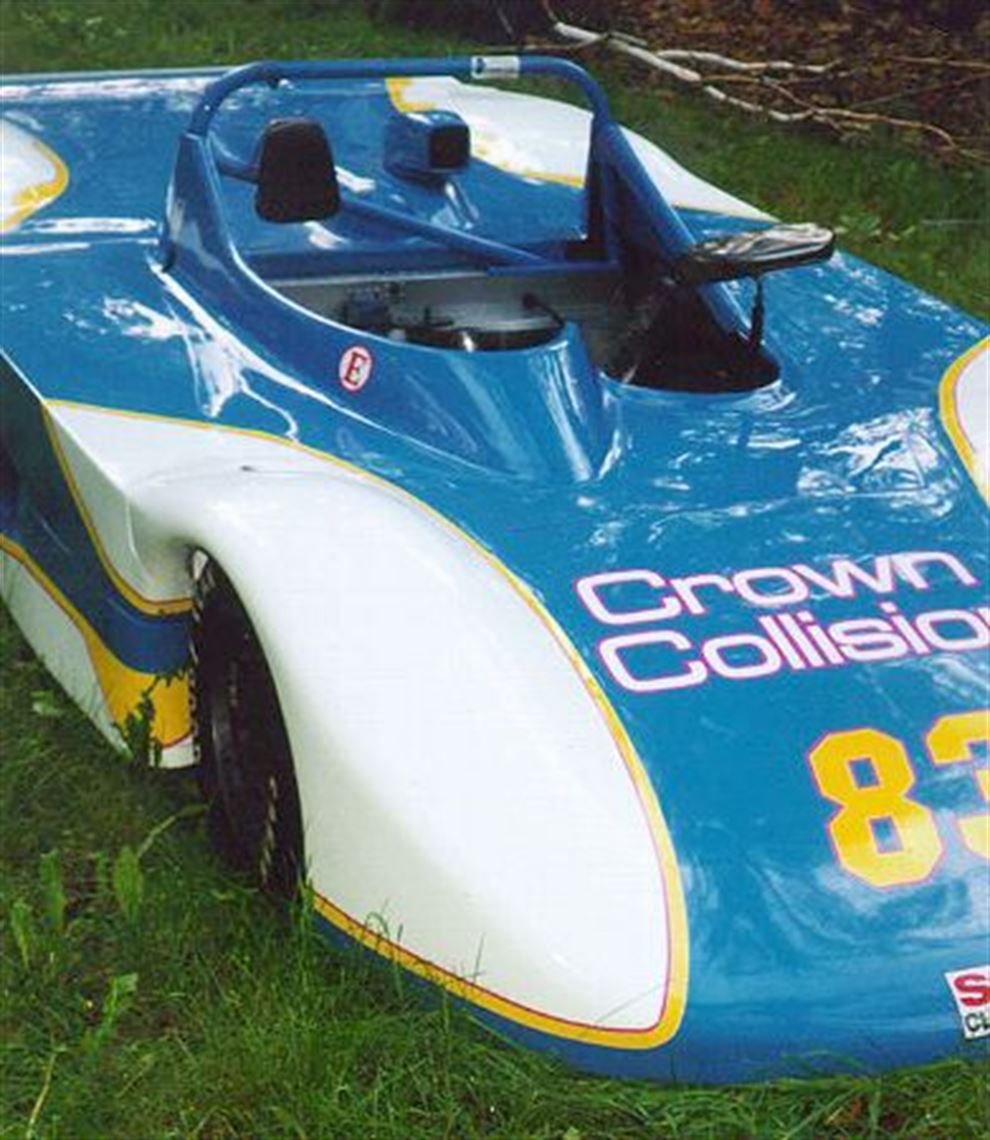

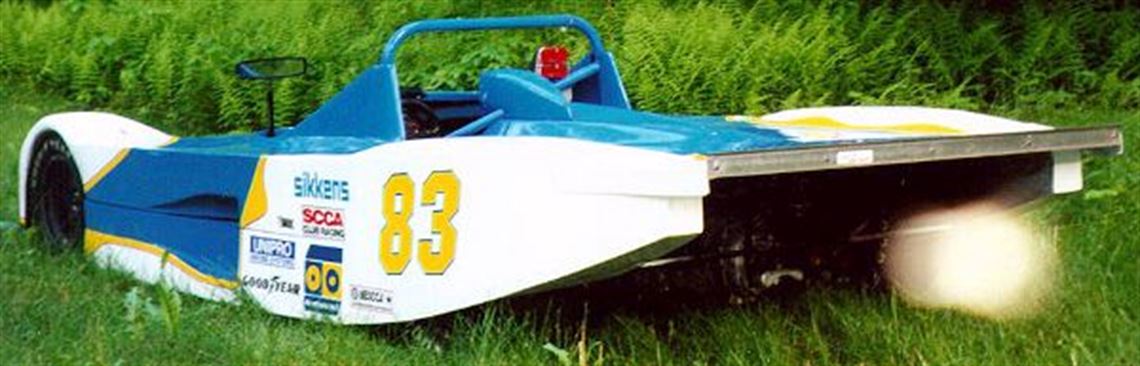

Body

• Kevlar body

• new, very high quality custom paint


Chassis

• excellent tub with new Titanium floor

• ultra rigid engine bay design

• fresh Konis

• dual wishbone

• top link, lower reversed a-arm, dual trailing rods

• rack and pinion

• aluminum hat brakes

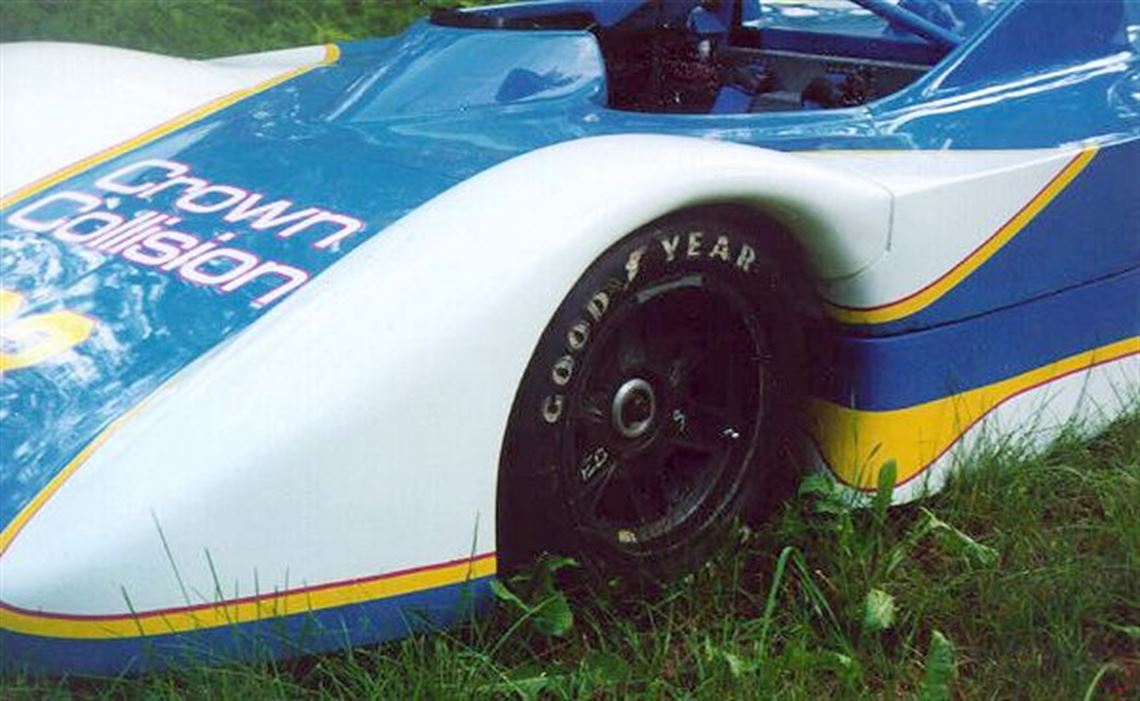

• rare and desirable Momo alloy wheels


Interior

• Stack data recording tach


Spares

• Suspension



  • 2 front upper A-arms, aero section, custom design, new.

  • 2 front upper A-arms , Original Lola design,

  • 1 front lower left front A-arm, repaired

  • 2 tie rods

  • 4 front sway bars, 2 large, 2 small, all blade adjustable.

  • 2 lower rear trailing links

  • 1 upper rear trailing link

  • 2 left rear lower A-arms

  • 1 rear sway bar, large

  • 2 sway bar links

  • 3 upper camber links

  • 2 RF uprights, one new, one modified

  • 2 rear uprights, repaired

  • 2 Front stub axles

  • 2 front drive flanges

  • 1 wheel bearing

  • 3 rear drive flanges

  • 2 rear stub axles: 1 OK, one with questionable treads.

  • 4 drive pins

  • 4 Koni gas shocks, with proprietary valving

  • 500# spring set



• Brakes



  • 16 LD-65 Caliper halves

  • Misc. pistons, hardware, spacing blocks

  • 7 Vented rotors: 5 hat mount, 2 cast Lola

  • 6 AP/Lockheed master cylinders

  • Bias bar

  • 2-3 sets of Carbon metallic pads



• Driveline



  • Transmission



    • 2 transaxle cases

    • 1 Ford/Hewland adapter

    • 3 side covers, 2L, 1R

    • 1 selector housing assembly

    • 2 rear covers, 1 with wing mount, 1 Hewland.

    • 1 alloy differential assembly

    • 1 slave cylinder

    • Complete gasket set-new

    • Complete internals

    • 32 gearsets with storage box



  • Clutch



    • 1 Tilton OT-III 5.5” F3 clutch assembly

    • 2 Tilton OT-III 5.5” F3 discs

    • 1 Tilton OT-II 7.25” disc



  • Halfshafts/CVs



    • 3 Solid

    • 2 Tubular

    • 5 lightened CV cages, 2 stock

    • misc. CV balls



  • Starters



    • Tilton



      • 2 complete Super starters

      • 5 splined engagement snouts

      • 3 Bodies

      • 1 motor

      • 2 solenoids



    • Other



      • 1 lucas motor





  • Motor



    • Exhaust



      • 1 Complete Cosworth YAC system (great for ACRL conversion)

      • 2 Pinto primaries

      • 1 Collector with pipe

      • 1 stainless collector with reversionary taper

      • 1 bracket



    • Cooling



      • 2 swirl pots

      • 1 expansion tank

      • 5 cooling system tubes

      • 4 thermostat housings

      • misc. hoses



    • Ignition



      • 1 Accel 300+ module

      • 1 Luminition module

      • 1 Bosch/luminition distributor

      • 3 new caps

      • 1 new rotor

      • 1 new points set

      • 1 new condenser

      • 8 Spark plugs

      • 1 Jones tach



    • Other



      • 3 Carbs: 2 Quicksilver, one Farley

      • 1 fuel pump

      • 1 New Water pump

      • 1 Quicksilver valve cover

      • 1 intake gasket

      • 5 throttle cables

      • 3 Dry sump tanks, 2 cylindrical, 1 rectangular.

      • 1 oil cooler

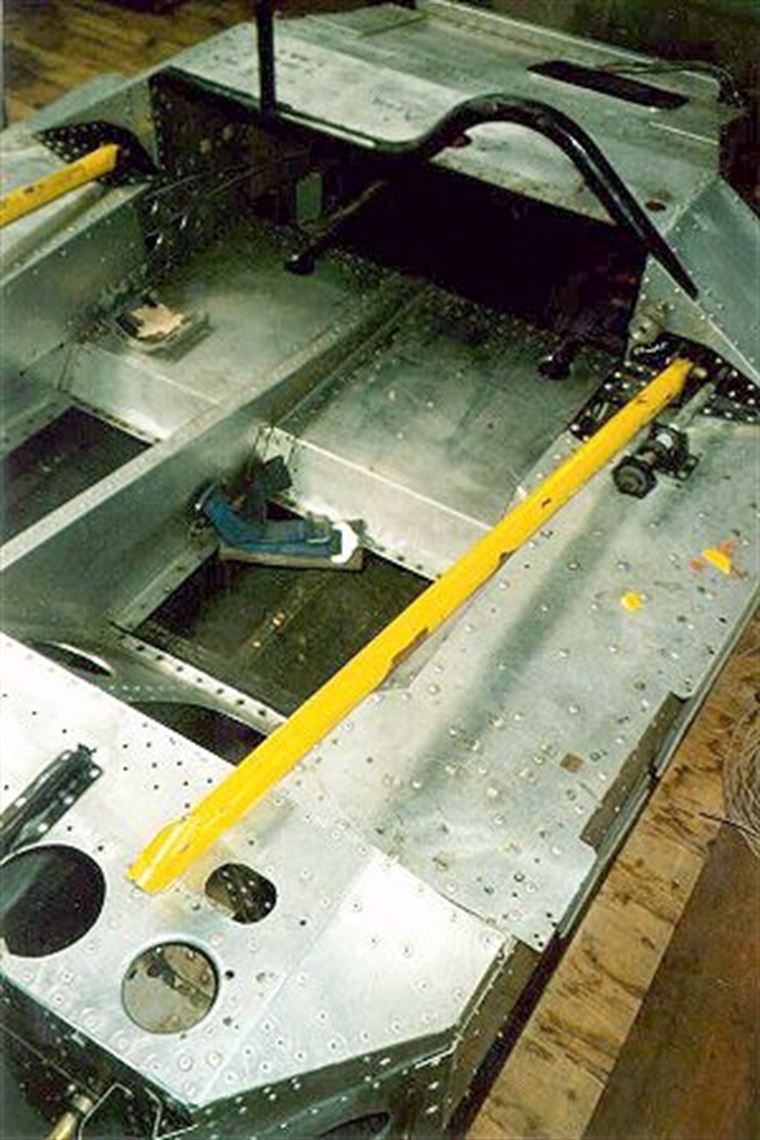

• Tubs

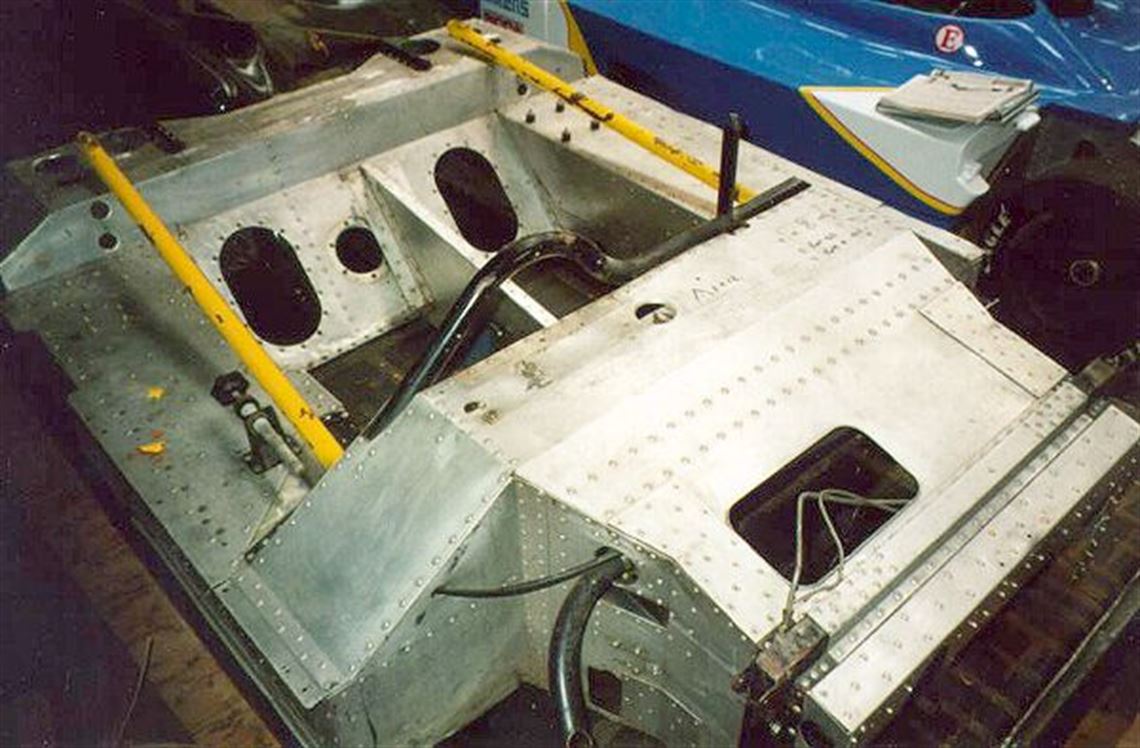

  • Complete tub from the car which won the National Run-offs with Chris Simmons, and
    set the Road Atlanta lap record with Michael Gnazzo. It is perhaps the
    most successful S2 Tub in existence, winning the vast majority of its
    races with Chris Simmons, Michael Gnazzo, and Steven Johnson. The floor
    has been removed for replacement, as has the front bulkhead (not a
    result of crash damage, rather an unfinished structural
    redesign/upgrade.). It does however, have battle scars from an
    extremely fast, and accordingly hard, life. Interestingly, the scars
    happened before its Runoffs successes, and there is no reason it
    shouldn’t be as fast as ever, although a bit rough around the edges.


  • There is another rear half of a tub with useable panels and mounts.


  • Additional tub parts:



    • 1 LF shock mount/gusset

    • 1 RF shock mount/gusset

    • 2 lower rear trunion mounts

    • 1 pedal assembly

    • 1 shift linkage

    • 2 steering columns, 1 with solid flange, one with releasable hub

    • 2 front bulkheads

    • 1 ATL fuel cell

    • 1 Special “Run-offs only” aero roll bar

    • 4 roll bar struts





• Chassis



  • 1 Lower rear cross member, new

  • 1 Upper rear cross member

  • 1 upper rear trunion

  • 2 subframes, large diameter

  • 5 Radiator/sidepod mounts, 2 R, 3L (all require new ears)

  • Steering rack components

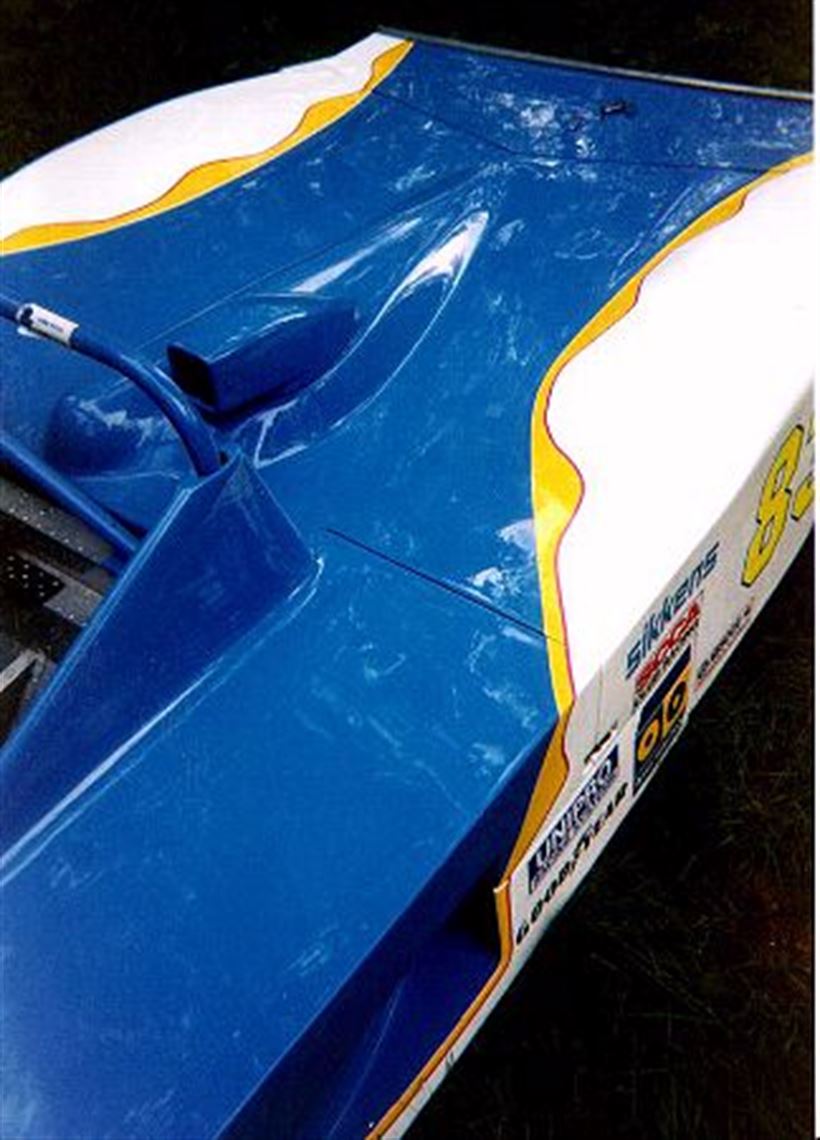

• Bodywork



  • Noses



    • Kevlar, with professional in-mold repairs, lightweight Runoffs piece
      with honeycomb underskirts, white/blue flames, 20 pounds, needs paint.

    • Kevlar, with professional in-mold repairs, fresh black paint, 23
      pounds



  • Center sections



    • Kevlar, repaired Runoffs piece, white. Serviceable.

    • 50/50 glass/Kevlar, blue/black, repairable rips in cowling.



  • Tail



    • 50/50 glass/Kevlar, splitter extension, minor damage, blue/black.



  • Side pods



    • Left: white, 10 pounds

    • Right: purple, 13 pounds

    • 3 radiator shrouds



  • Mirrors:



    • 2 cowl mounted

    • 2 Lola center post units



  • Side fences:



    • Complete set, black.

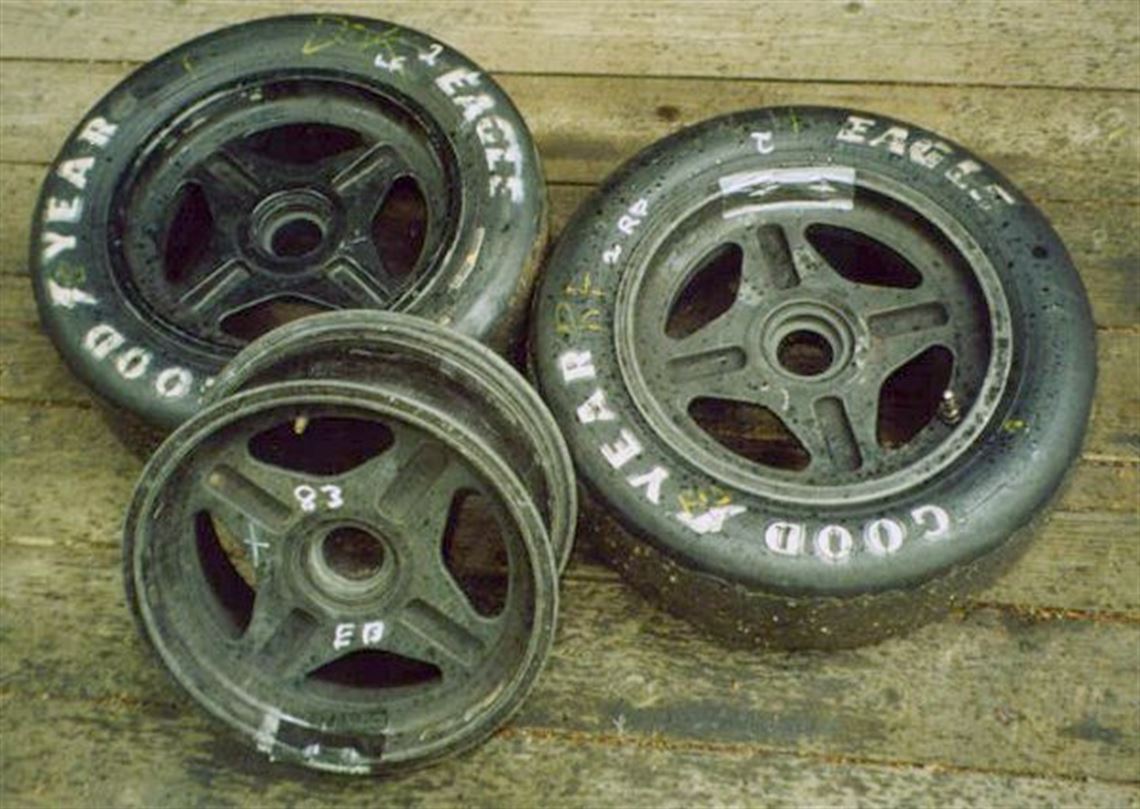

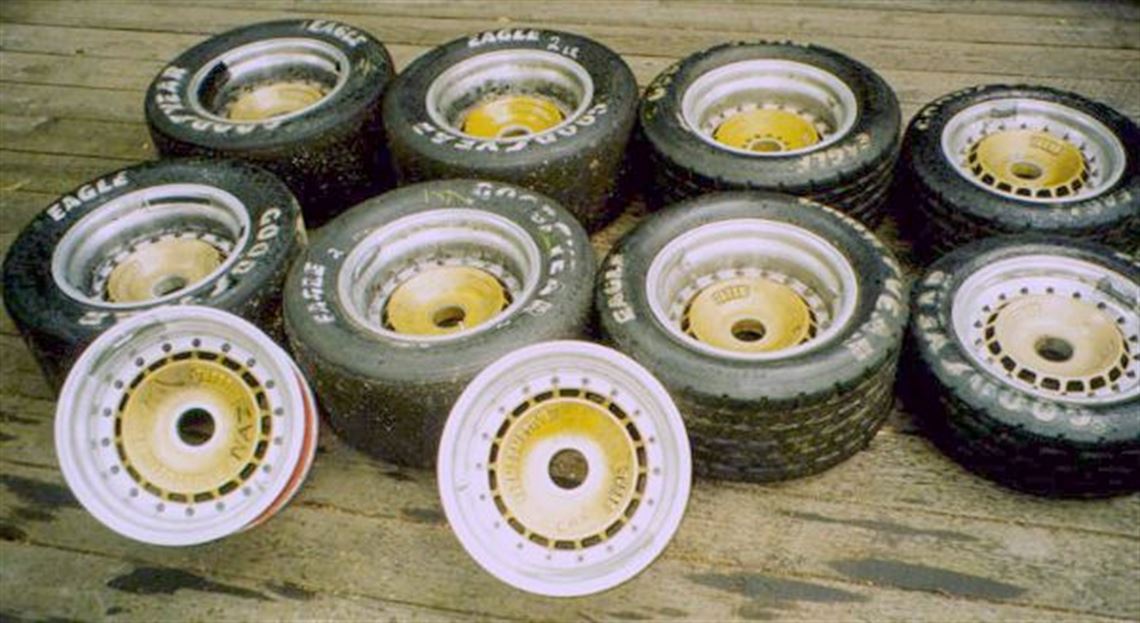

• Wheels (In addition to the 4 Momo mags on the car)



  • 3 Ralt/Dymag front alloys

  • 2 front Compomotives

  • 6 rear Compomotives

  • 1 extra center section

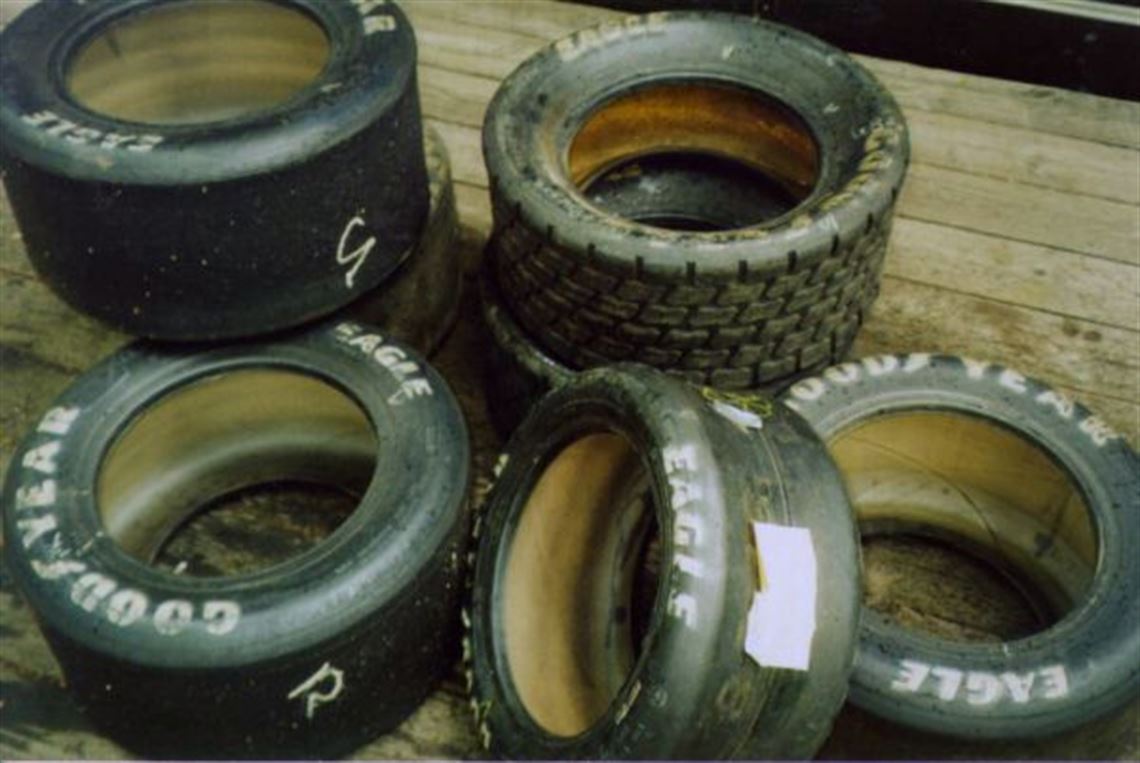

• Tires )All Goodyears, with plenty of good tread remaining)



  • 1 Complete set of mounted rains

  • 2 mounted fronts: 430 compound

  • 2 mounted rears 430 compound

  • 1 new 430 6.5” front: 430 compound

  • 2 rears, 160 compound

  • 1 rear, 600 compound

  • The tires on the car have excellent tread as well.



• Hardware



  • 1 box of car-specific pieces

  • 1 box of rod-ends



• Also included are Log book, homologation papers for the aero roll bar,
  CAD drawings of the Titanium floor piece, Set-up recommendations,
  operations protocol, quick jack, etc...
