1994 Reynard 94D - SOLD

F1 Authentics 4

This is now SOLD. Search for similar items.

Description:

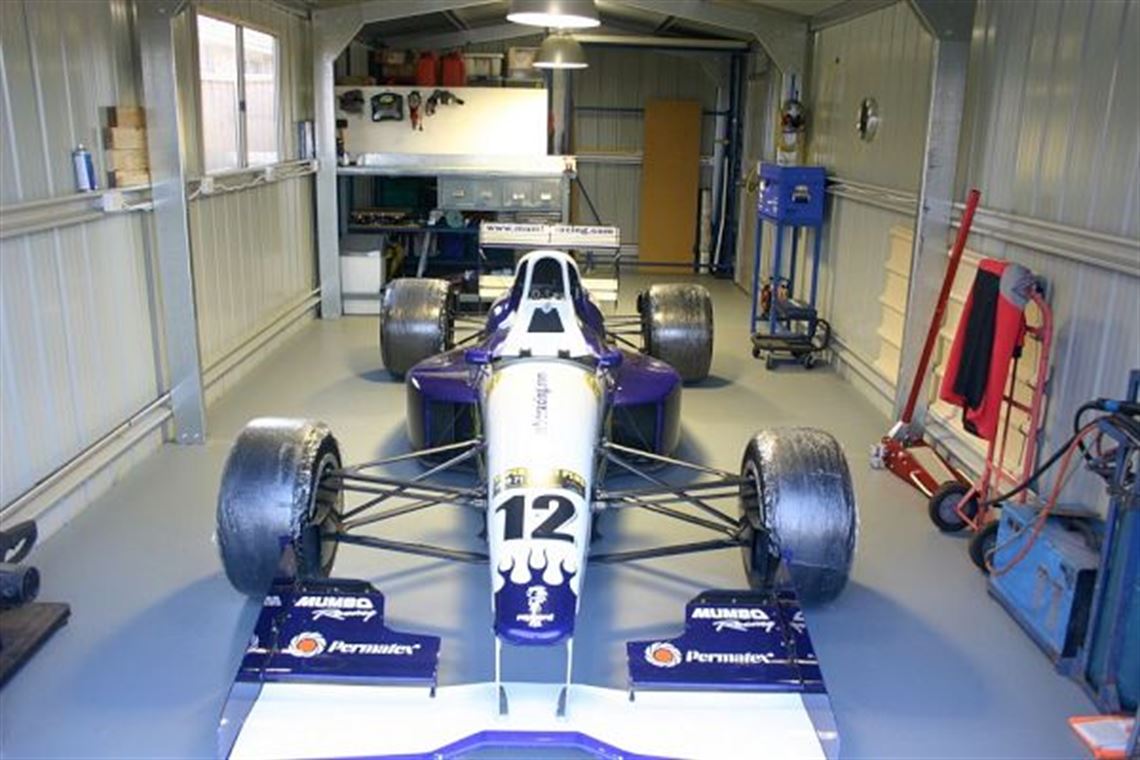

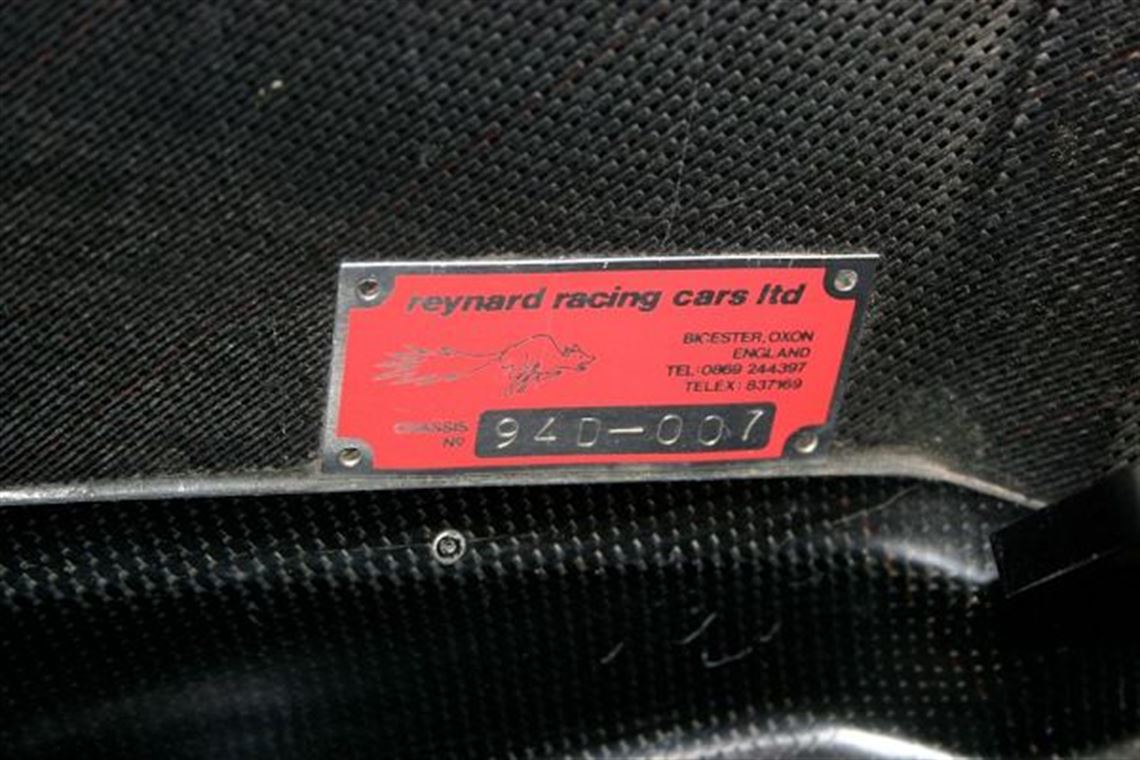

Reynard 94D, chassis #94D-007. Originally raced by Vortex in 1994, driven by David Coulthard, then in EuroBOSS by Earl Goddard, and in the Australian Formula 4000 series. The car has race wins, lap records and more. Currently fitted with a Holden Alloytech V6 (3.6L, quad cam), with MoTeC M880 ECU. Very large spares package included, and additional parts, moulds and engine fitting kits available. This is a car with true pedigree, and has been well looked after throughout. Current owner is selling following a child-induced hiatus. Clutch is in need of a minor rebuild. Current spec: Weight: 650kg (including driver) Construction: Carbon-fibre monocoque, built by Reynard Front Suspension: Double-wishbone, pushrod, Dynamic coil-over (recently rebuilt by Murray Coote), blade anti roll bar Rear Suspension: Double-wishbone, pushrod, Dynamic coil-over (recently rebuilt by Murray Coote), blade anti roll bar Front Brakes: AP Racing 4-piston, vented steel rotors Rear Brakes: AP Racing 4-piston calipers, vented steel rotors Engine Capacity: 3600cc Configuration: Quad cam, aluminium V6, steel crank, dry sump, Holden Motorsport Alloytech Power: 350hp @ 7000rpm Engine Management: MoTeC M880 ECU controlling single throttle-body fuel injection Transmission: 5-speed, sequential, transverse, viscous differential Front: 13 x 10 inch, OZ Racing alloy Rear: 13 x 15 inch, OZ Racing alloy Data Logging: Aim M3XGLog dash and data logger Additional details are available on request. Car is currently located in NSW, Australia. Shipping at buyers discretion, can assist with delivery to Sydney or similar, and can facilitate shipping quote from Sydney- based freight forwarder to your location.


History

Vortex F3000 - 1994 Paul Stewart Racing F3000 Goddard Racing EuroBOSS Mumbo Racing - Australian F4000

Competition History

Race winner, lap record holder
Performance Data

  • F3000
  • Thruxton (in EuroBOSS trim)
Engine
  • Holden Motorsport
  • Holden
  • V6
  • 3600cc
  • ~350bhp
  • Single Throttle Body, Fuel Injection
  • Holden - Alloy
  • Holden - Alloy
  • Holden - Steel
  • 24
  • Carbon
Fuel System


  • Reynard
  • 100l
  • PULP
Electrical System

  • Aim M3XGLog
  • MoTeC M880
Transmission

  • Reynard
  • Transverse, Sequential
  • 5 + Reverse
  • Sequential
Body

  • Carbon Fibre
  • White and Blue
  • 2 Pack
  • Very Good
Chassis

  • Monocoque
  • Reynard
  • Carbon Fibre
  • Double Wishbone
  • Double Wishbone
  • Dynamic, recently rebuilt by Murray Coote
  • 4 piston
  • Oz Racing Alloy
Interior

  • 6 point
  • Aim Dash
  • Momo
Spares

  • Floors
  • Wings
  • Gear ratios
  • Suspension parts
  • Wheels
  • Wet tyres
  • Brackets & Bolts
  • Belts
