Description:

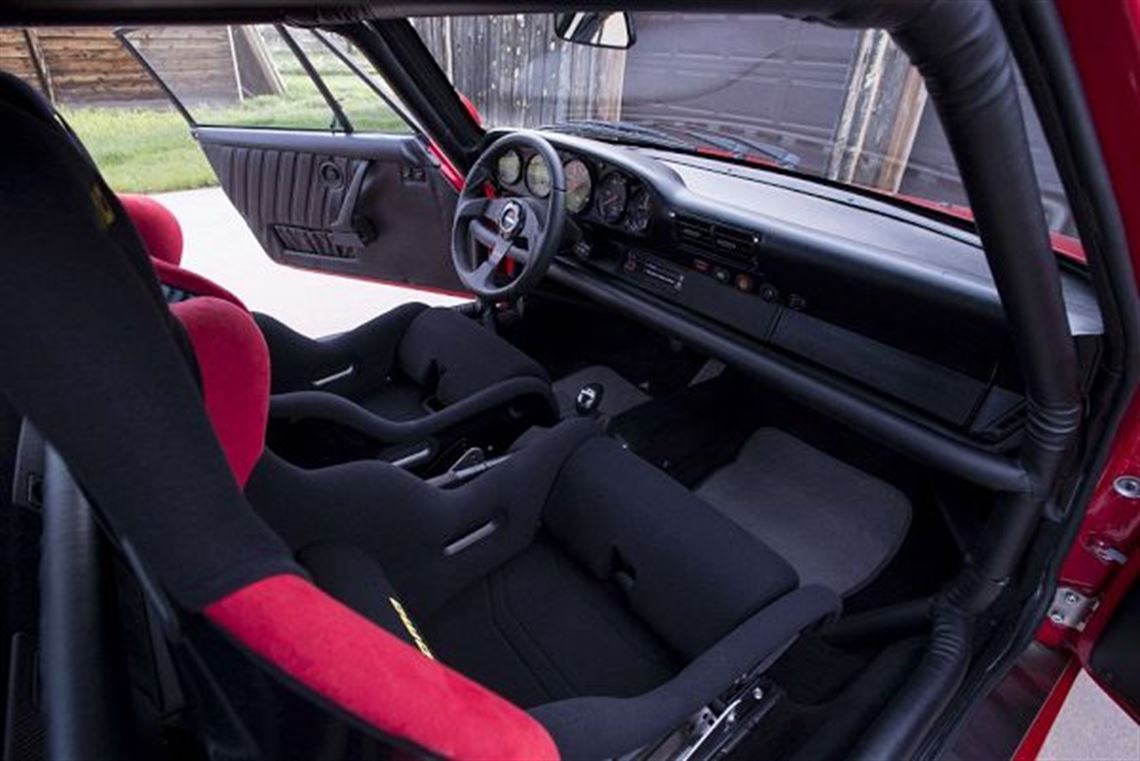

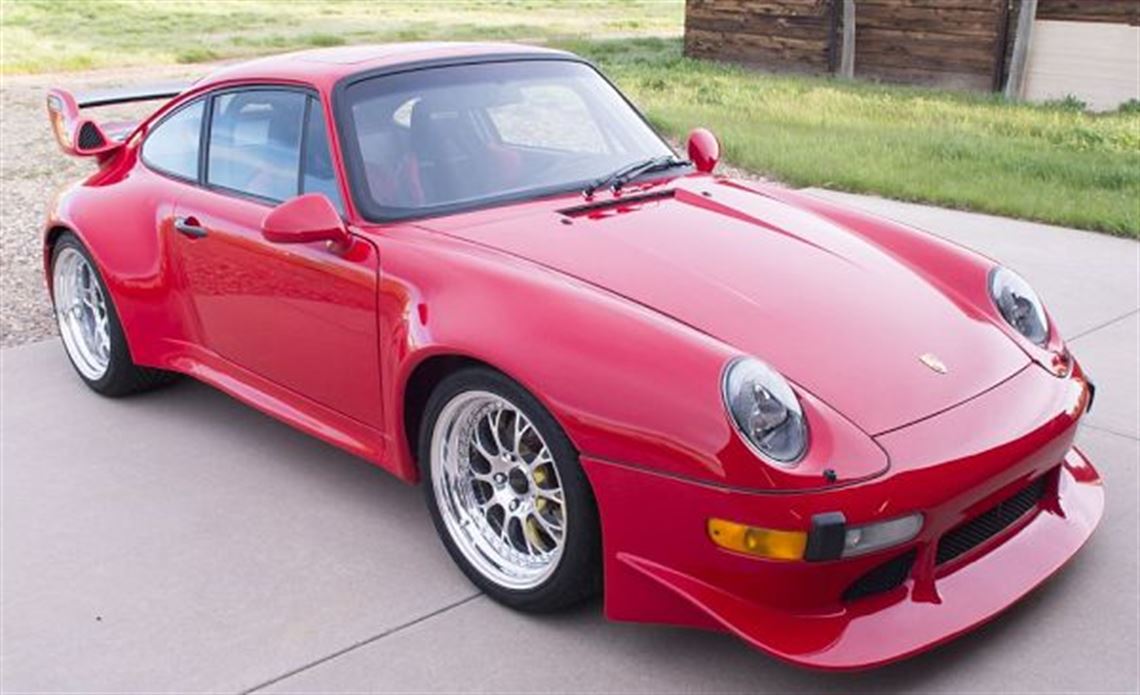

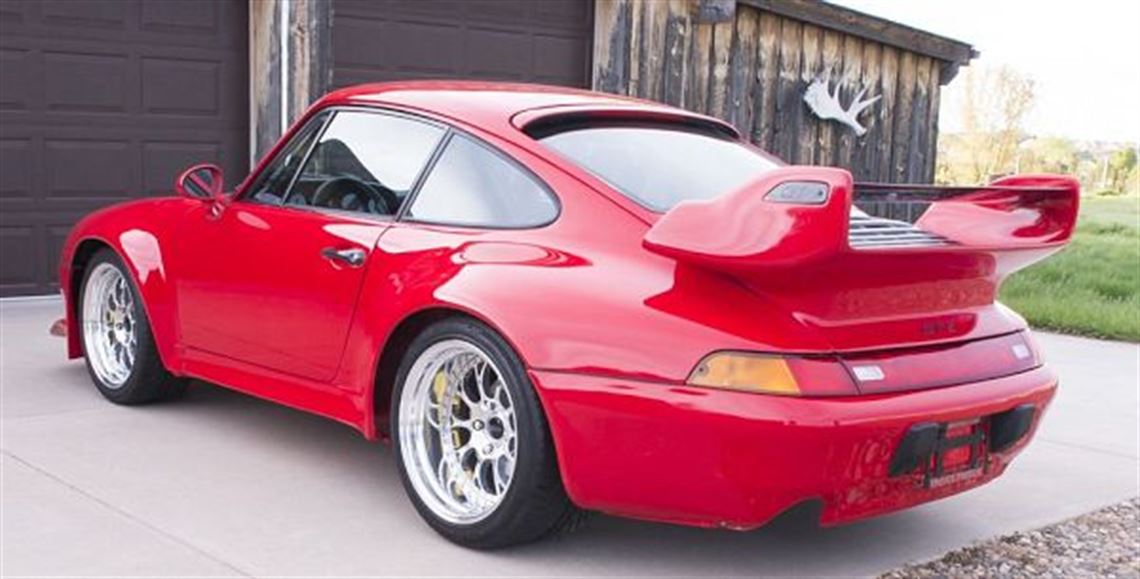

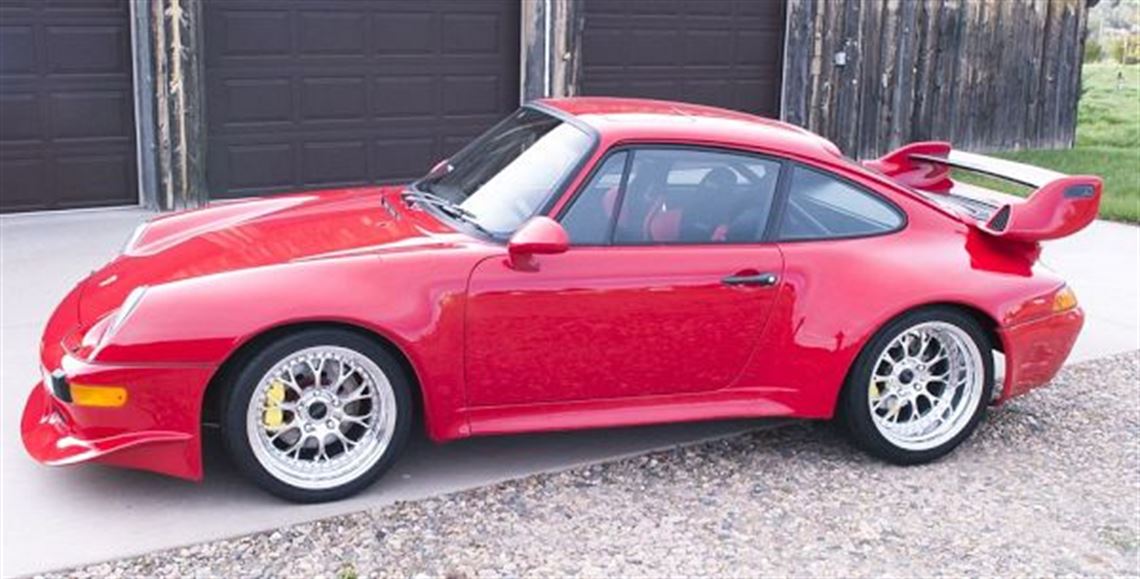

This is a 993 GT 2 clone built on a 1977 911S tub. There are zero miles on this build. A custom full roll cage with back up plates and padding has been installed. The fiberglass wide body kit is from M A Shaw. All of the exterior lights are Porsche factory units, not cheap aftermarket stuff. A custom windshield cowl has been fabricated moving the wipers closer together to further the 993 series look of the car. The car is painted Porsche 'Guards Red' with clear coat and the bottom of the car has a pebble finish rock chip coating under the paint. Momo race seats on Porsche sliders and a Momo steering wheel and shift knob compliment the fully finished interior, with new carpet, headliner, door panels and custom console. It retains the Porsche factory dash and gauges with a 993 series dash pad. It has power windows and power sunroof. A custom Fluidyne radiator has been installed in the nose of the car to support either a V8 conversion or a water cooled Porsche engine. It has dual AFCO master cylinders with a balance bar, Wilwood calipers, six piston in front and 4 piston in the rear clamping on two piece rotors with iron discs and aluminum hats. There are two additional calipers in the rear for the parking brakes. The suspension uses components from Smart Racing, Bilstein, Eibach, Ground Control and Speedway engineering. The front suspension is a rocker arm style with remote mounted coilovers. The rear has adjustable spring plates along with the factory trailing arms and inboard mounted coilovers. Both front and rear sway bars are three piece units with adjustable end links. Both ends of the car are fully adjustable for ride height and alignment. The fully polished two-piece wheels are from Kinesis, sizes 18x9 in front and 18x13 in the rear all wrapped in Michelin Pilot Sport rubber. The front tires are 265/35s and the rears are 335/30s. The engine compartment has a beautifully built 383 cu.in. short block assembled to support a twin turbocharged, high horsepower race motor. It is mounted with a Rod Simpson Hybrids mounting kit that includes a remote mounted water pump. The short block is connected to a 4-speed 930 Turbo transaxle with Turbo axles and CV joints. The engine is not finished to allow the buyer to decide how complete the powertrain. The engine compartment is not cut up, so a Porsche engine could easily be installed. An LS series V8 could be a great option as well. Over $65,000 has been invested in this build.


History

Production street car/ HPDE

Competition History

n/a
Performance Data

• n/a

• n/a lbs

• n/a


Engine

• GM

• GM gen IV V8

• 383

• unknown

• unknown

• two turbos w/manifolds come with car

• none

• GM gen IV V8

• splayed 4-bolt

• fully polished stroker

• H beam

• flat tops for turbochargers

• gear drive, unknown specs

• none

• none

• none

• none

• none

• coated shorty headers w/ turbo adapters

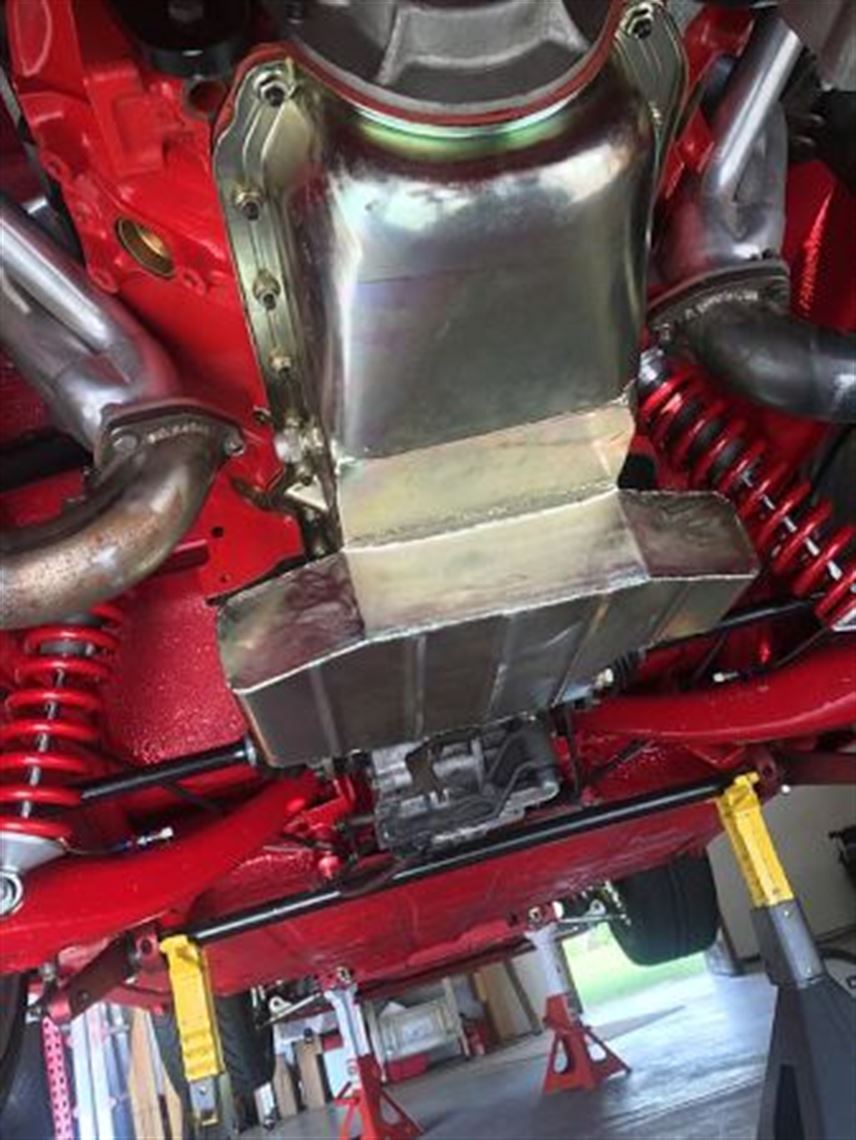

• Moroso road race oil pan w/wings, System 1 oil filter


Fuel System

• Fuel Tank

• gasoline


Oil/Water System

• Fluidyne, custom unit

• front of car

• remote mount


Electrical System

• New MSD dist, coil, 7AL-2 control box

• none

• New MSD components come with car


Transmission

• Porsche

• 930 Turbo transaxle

• 4 speed

• stock


Rear End

• Porsche

• 930 Turbo

• Turbo w/ Turbo CV joints


Body

• Steel tub,hood & doors fiberglass fenders,bumpers,engine cover

• Porsche 'Guards Red'

• base coat/ clear coat

• very nice 0 miles

• pebble finish rock chip coating under paint on bottom of car


Chassis

• Porsche unibody with custom roll cage

• roll cage is covered w/padded vinyl sections

• very nice 0 miles on build

• rocker arm w/remote coilovers, cad plated, 0 miles

• spring plates w/inboard coilovers, cad plated/painted, 0 miles

• Bilstein gas charged, 0 miles

• AFCO dual master cyls. Wilwood cals. 6-pist. F, 4-pist. R

• Porsche rack&pinion

• Polished 2 pc. Kinesis 18x9 F 18x13 R

• Michelin Pilot Sport


Interior

• Black w/ red accents, carbon fiber look hdlnr. cnsol. R pnls

• cloth, vinyl, carpet, leather

• none

• Harness bar installed

• factory Porsche dash panel

• Momo 14 inch

• very nice 0 miles


Spares

• Turbo axle shafts

• misc. bits and pieces

• front hubs

• some build receipts and paperwork

• Porsche exhaust tips

• misc. interior pieces
