Description:

This particular car is the n° 4 chassis produced by Martini for the Peugeot 905 Spider Fench Championship and European
Cup. It was built in August 1993 and was never raced. It has done only 800 km (500 miles) of testing only
and is in as new condition. It comes with a huge spare package including a new engine, a spare bodywork,
wheels and tyres as well as a 1999 updated CDS Track Master data logging system, on its own worth US$ 20,000.
Full documentation including bills, set up sheets, manuals, software, drawings, etc. come with the car.
The gearbox and drive train were overhauled completely by Martini and the car has done just 100 km (60 miles) since.
This is a unique opportunity to acquire a complete racing package in unmolested and pristine condition.


History

Introduced by Peugeot Talbot Sport at the time when the Peugeot 905 EV Sports Cars were on their way to winning their
second Sports Car World Championship title, the Peugeot 905 Spider sports car French championship and European Cup
were to be highly competitive, yet tightly controlled, one-body series intended to attract young talented drivers.
It was run for two years using Peugeot Mi16 220 bhp 2-litre sealed engines. The choice of chassis was free although tightly
controlled as well with sufficiently roomy cockpit dimensions to accomodate all sizes of drivers. Different homologated
manufacturers offered their design of chassis for this sports car bodied single seater, but all bodies were supplied by Peugeot.
Well known Formula Renault, Formula 3 and Formula 2 manufacturer, Tico Martini proposed his version of the 905 Spider
monocoque and produced about 20 cars, an example of which is presented here. Other manufacturers included Orion and
WR. When tested by Tiff Needell for Autosport in 1993, the 905 Spider was declared as being a delight to drive, with
performances comparable with an F3, and also a truly attractive alternative for young drivers tired of F3 and unable to afford
F3000.


Competition History

No racing history. This car was used only for testing and has done only 800 km since it was built.

Engine

• Peugeot Talbot Sport 4 cylinder Mi16 sealed engine.

• Type : XU 9 J 4.

• 800 km (500 miles) of testing since new.

• 1998 cc.

• 16-valve cylinder head.

• 220 bhp @ 8,000 rpm.

• 20 Nm @ 6,750 rpm.

• Safe rev limit : 9,000 rpm - 8,500 never exceeded.

• Electronic fuel injection with Magneti Marelli management system.

• exhaust system without silencer.

• AP Racing clutch.

• A second brand new zero mile sealed engine supplied by Peugeot Talbot Sport and worth more than US$ 18,000.- is included.


Fuel System

• Fisa FT3 compliant rubber fuel bladder.

• Capacity : 40 l.

• Runs 98 octane unleaded fuel.

• 2 high pressure Bosch fuel pumps.


Oil/Water System

• Dry sump.

• Water radiator located on the right side floorpan

• Oil cooler located on the left hand side floorpan.


Electrical System

• Magneti Marelli electronic system.

• 2 x DMS 30 12v batteries.

• Total loss (no aternator).

• Fuel mixture control.

• Competition Data System Track Master 97 data logging system worth more than US$ 20,000.-, updated in 1999,

• including :

• RPM magnet type sensor

• throttle position sensor

• accelerometer

• steering position sensor

• Track Master II with map

• Track Master suspension

• photo beam receiver

• photo Beam beacon

• suspension kit

• tyre temperature sensor

• aero pressure sensor

• disc temperature sensor

• wiring system

• cable tool kit

• 2 Mb memory card

• parallel port card reader

• software for DOS 6.0/6.2 and for Windows 95/98

• operating manuals, instructions, etc

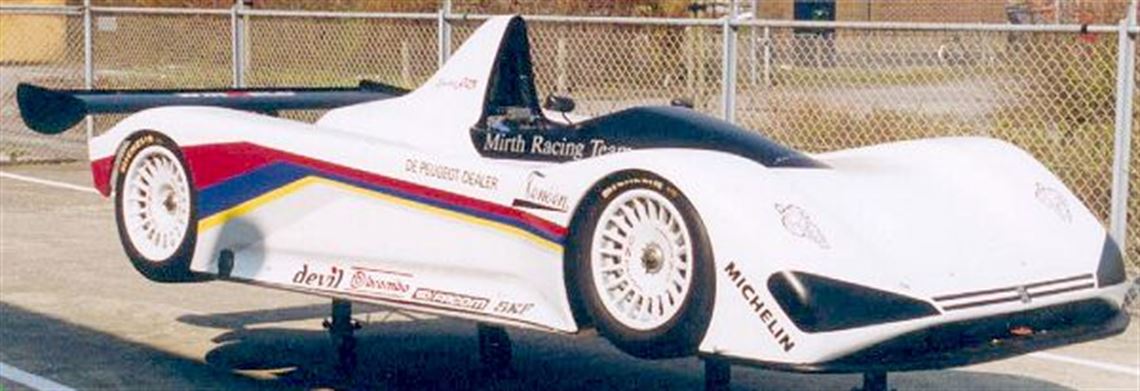

Body

• Two original Peugeot Talbot Sport bodyworks (worth more than US$ 5,000.-)

• one white (Peugeot colours) and one petrol ( blue / green)

• Kevlar reinforced fibre glass

• Adjustable rear wing

• Flat floor with diffuser

• Concours condition

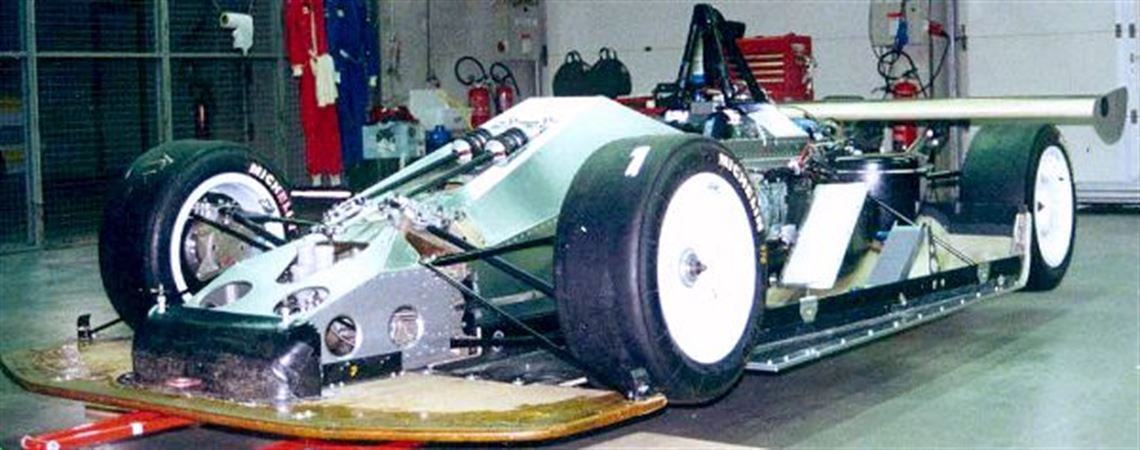

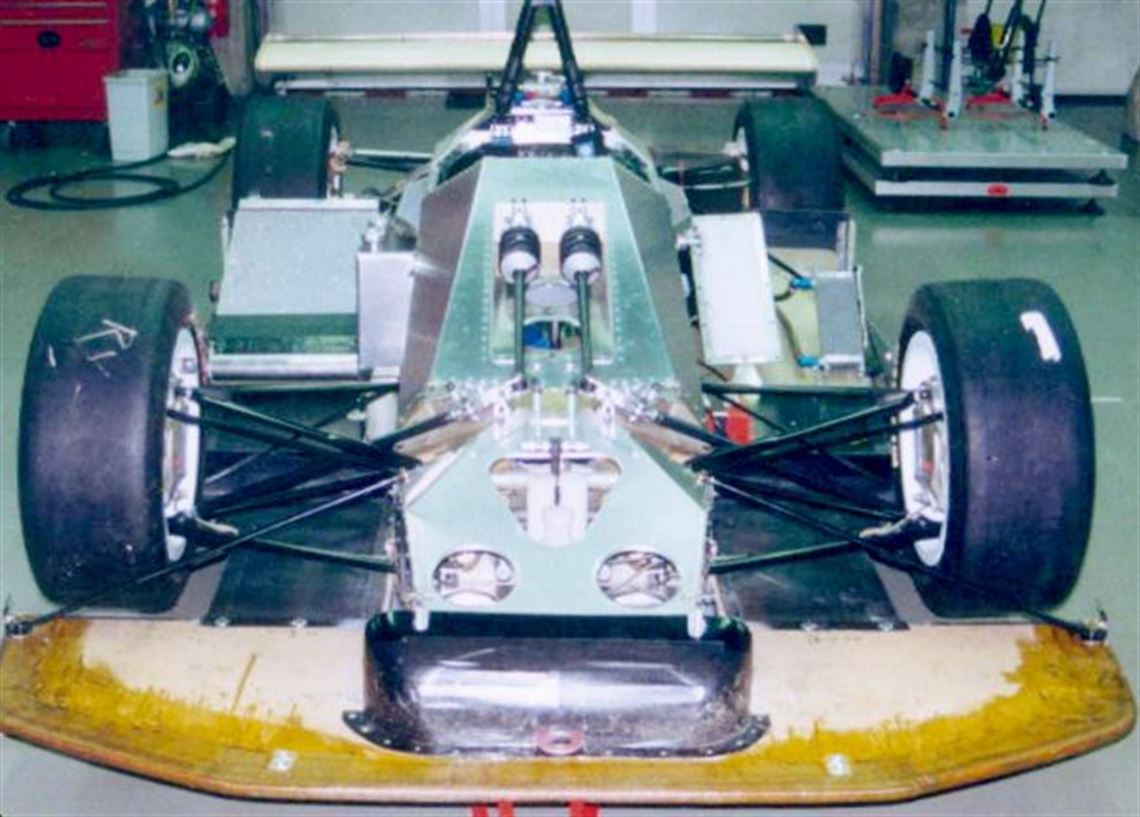

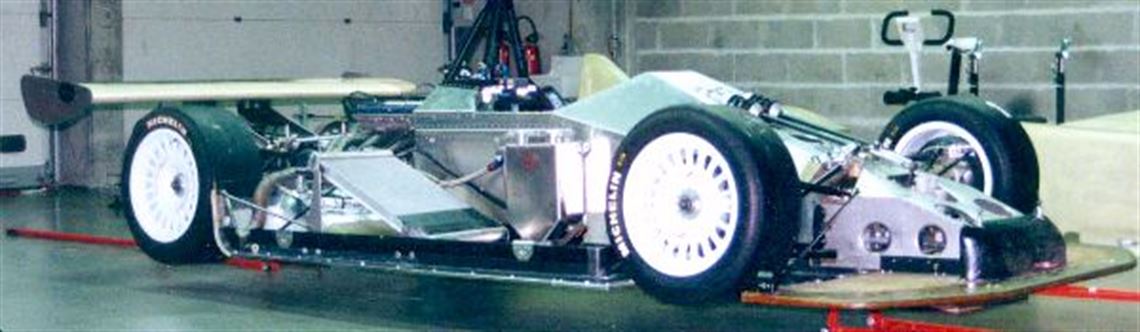

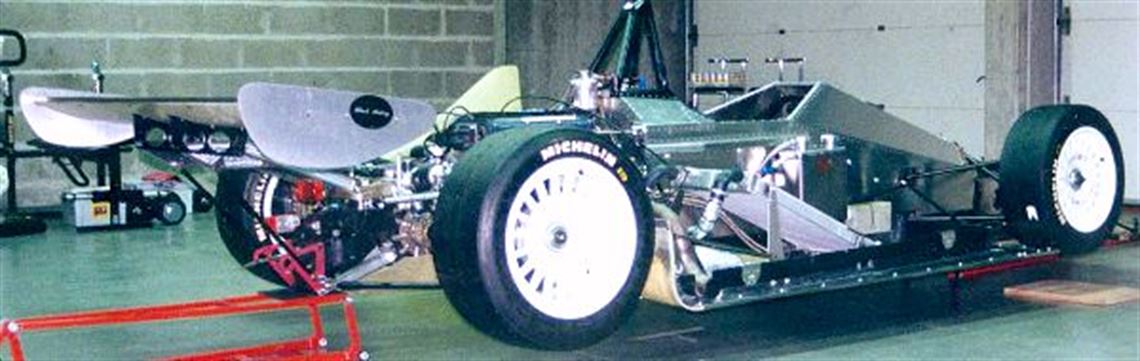

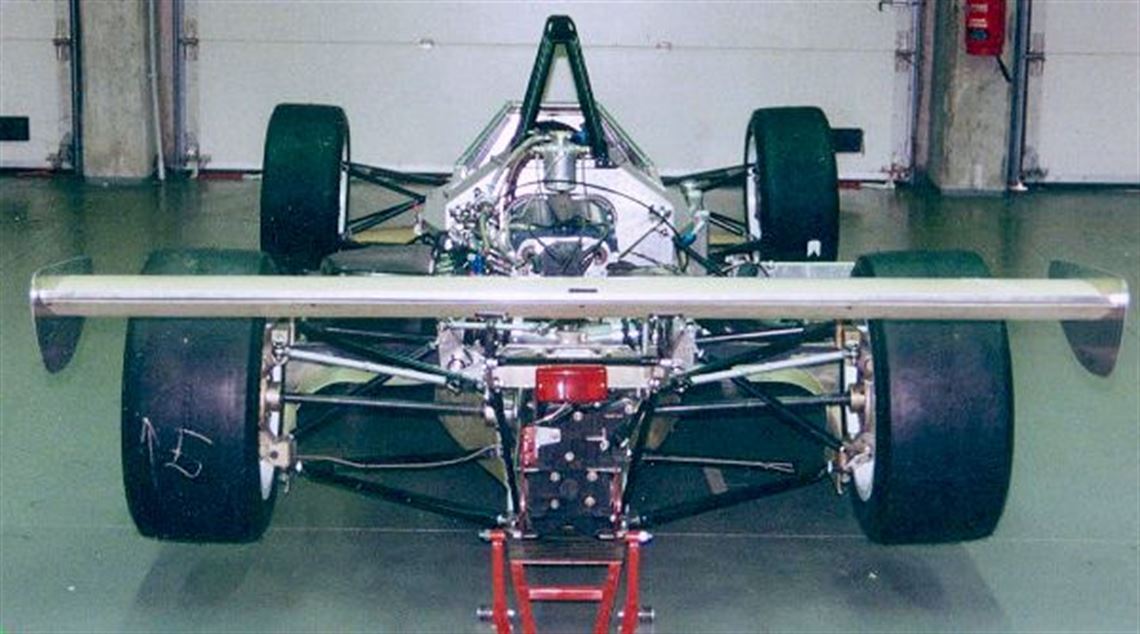

Chassis

• Aluminium honeycomb monocoque in concours condition

• telescopic Bilsteins front and rear

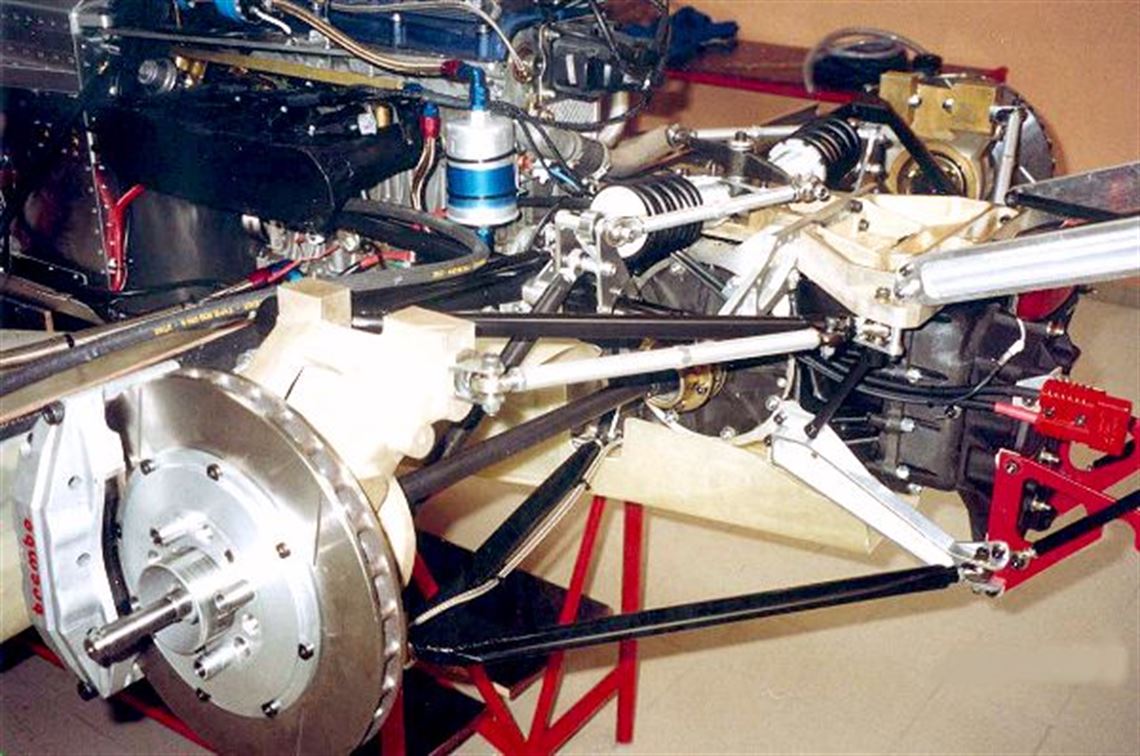

• double wishbones, pushrods, adjustable antiroll bar, cast uprights

• double wishbones, pushrods, adjustable antiroll bar, cast uprights

• proprietary rack and pinion

• four outboard Brembo ventilated discs, Brembo calipers, Aeroquip hoses

• OZ alloy wheels : 8.5" x 15" fronts and 10" x 16" rears, Michelin slick tyres @ 70 % : 20/59 x 15" fronts and23/62 x 16" rears.


Interior

• Safety harness

• SPA Fire system

• Stack electronic revcounter with telltale and memory

• Oil/water temperature gauge

• Oil/water temperature gauge

• CDS display with speed and laptime (by push button on the steering wheel)

• Download for laptop

• Haltech fuel mixture read out

• Momo steering wheel

• Radio car / pit communication system available (not installed)


Spares

• 1 complete painted bodywork with mirrors and fasteners, ready to fit (see under Body section above)

• 1 complete flat floor with all fittings, fasteners, diffuser and adjustable front part floor

• 1 aluminium crash box

• 1 new engine (see under Engine section above)

• 1 exhaust with Devil silencer

• 2 complete drive shafts including new CV joints

• 8 new CV joints

• 4 lightened CV joints

• 1 complete front hub including bearings

• 1 complete rear hub including bearings

• misc. body fasteners and repair kits

• some gear ratios

• gearbox tools

• complete Magneti Marelli ignition system including electronic bo, lambda sensor, spark plug leads, oil pressure switches,

• water thermo couples

• CDS data logger spare / repair kit and spare sensors

• 8 OZ alloy wheels with Michelin slick tyres (4 @ 80 % and 4 @100 %)

• 4 OZ alloy wheels with Michelin wet tyres @ 100 %

• 8 new AP Carbon Metallic brake pads

• 4 AP Carbon Metallic brake pads @ 80 %

• 16 Ferodo brake pads (@ 100 %, 90 % and 80 %)

• set up floor

• optical and digital alignment equipment for camber, ride height, toe in/out

• 2 long quick lifts

• 1 rear quick lift

• 1 wheel trolley

• 4 chassis stands

• 1 long chassis stand on wheels

• 1 chassis stand on 2 wheels for easy front manoeuvring

• lot of small parts like brake fluid, gearbox oil, etc

• spare safety harness

• Aceltime complete timing computer
