Description:

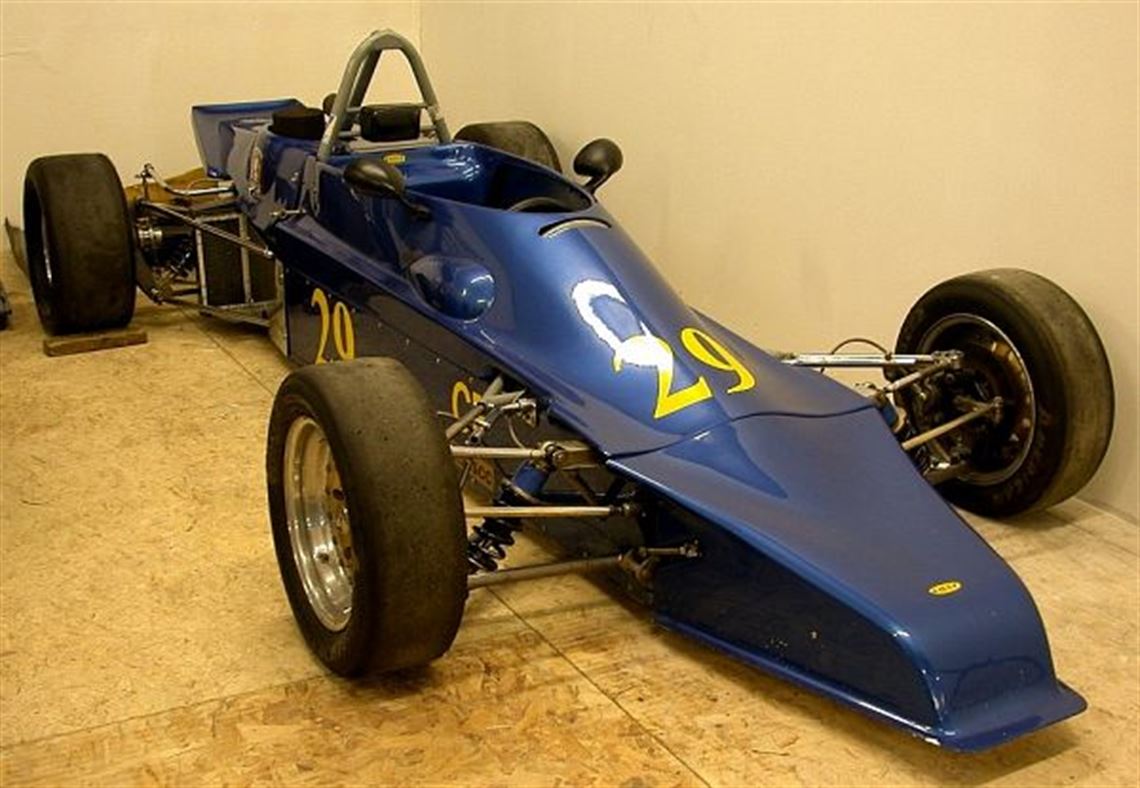

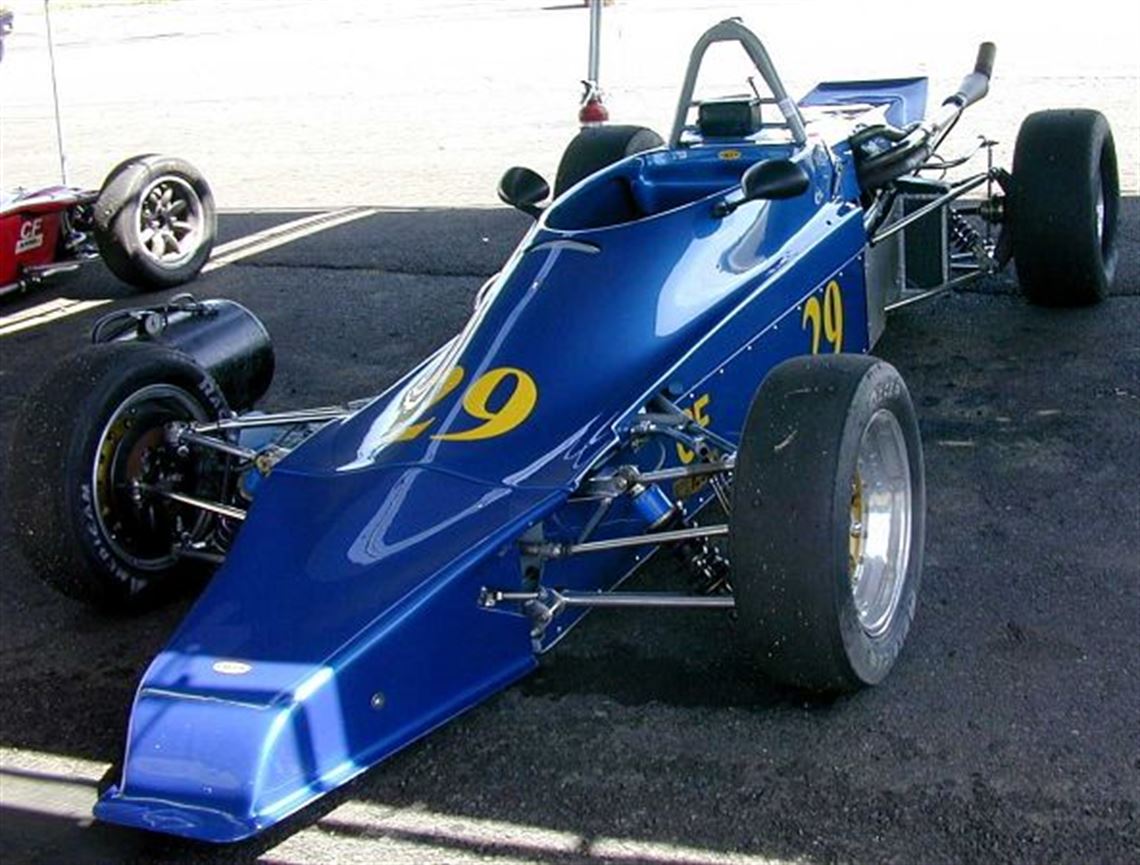

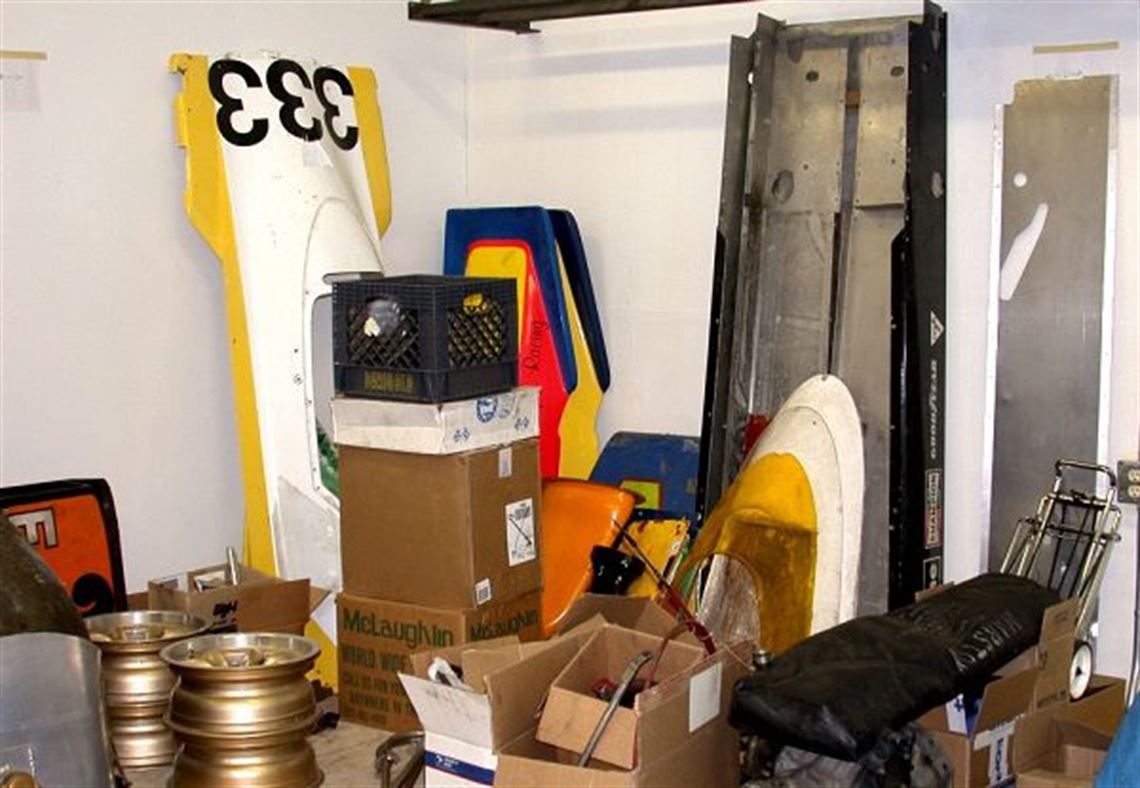

First customer example of the very popular and successful T340 series. Race ready. Frame up refurbishment by owner in 2001 with one season of racing following. Zero time 112HP Ivey, iron head. Porter fibreglas bodywork in 342 style. Original 1973 bodywork, snorkles, belly pan, and misc bits included as spares. Several gearsets included. Subtle chassis stiffening to high standards make this a very competitive car. Legal for VARA and other forward-thinking organizations. Great fun and a predictable, forgiving car to drive.


History

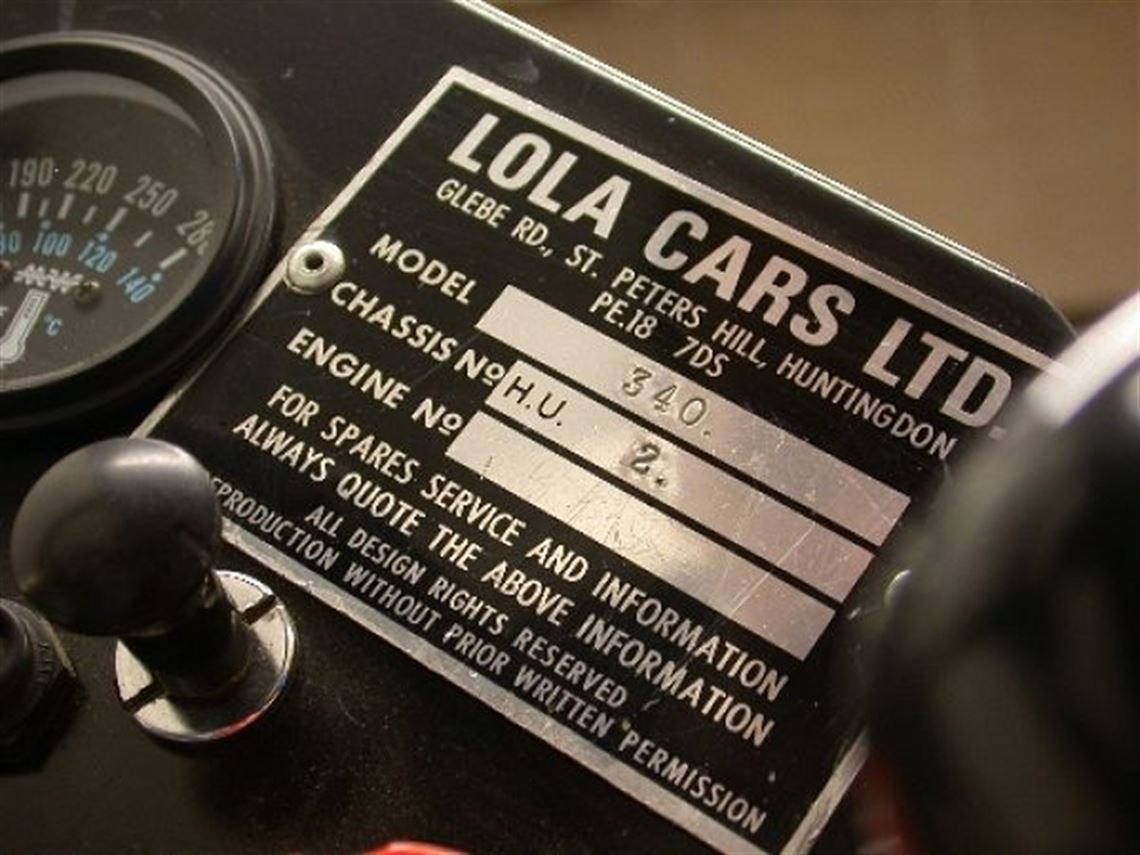

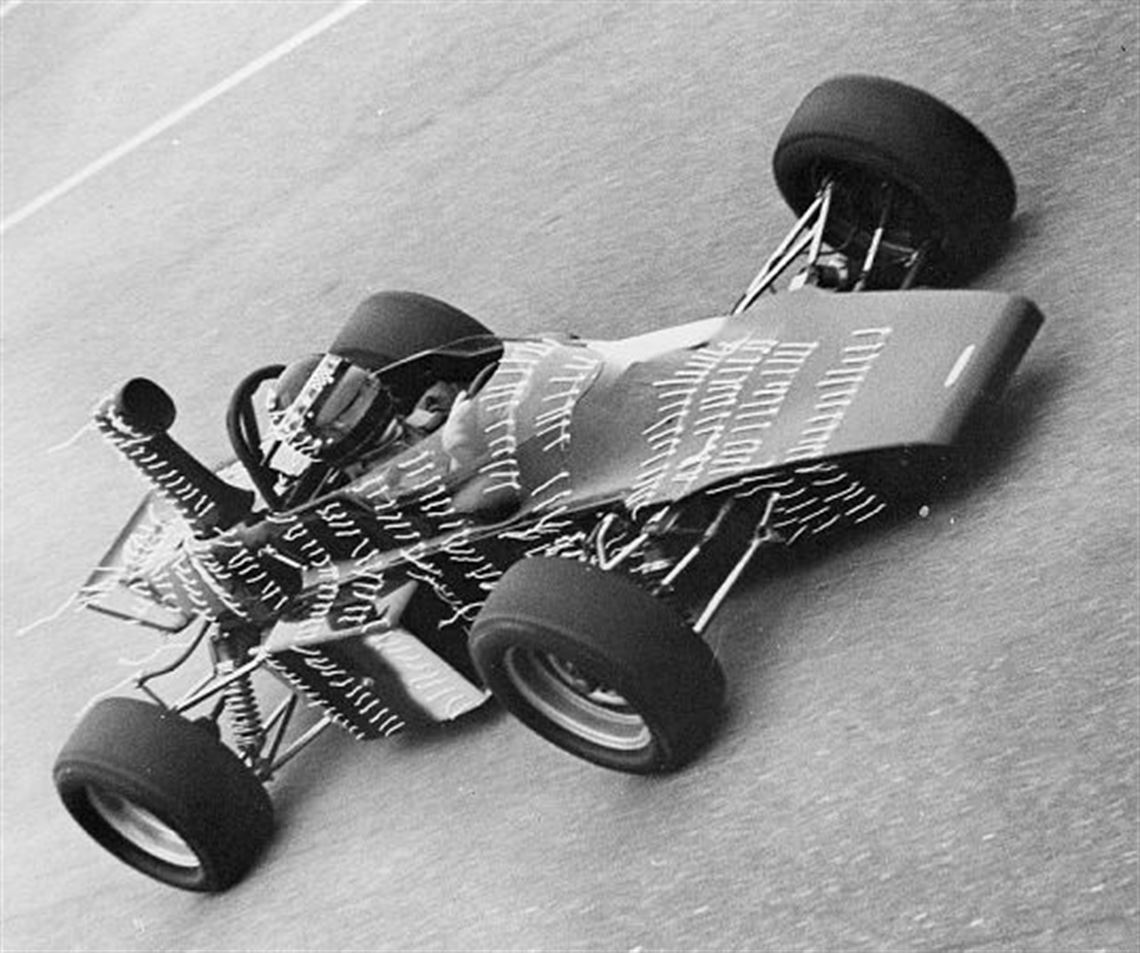

First T340 in the States, and the first production customer car off the "assembly line". Chassis #1 is believed to be in New Zealand and was actually a modified SuperVee. This car was supplied to Pierre Philips (the dealer) via Carl Haas (the importer), and sold to the first owner on time payments(!). Remarkably, the original engine block and gearbox have survived, and are in the car presently. Stiffened many years ago to high standards of workmanship by Spence Stoddard, 3700 ft-lb/deg. Snorkle-era photo is during the initial aero testing by the first owner, a Boeing engineer. The notes he took are part of the provenance included with the car. Always a Pacific Northwest car, it is well known in the region. 1999: Purchased by current owner; 2000: Novice season; 2001: Club Ford season, vintage events; 2002: Idle; 2003: New Ivey engine installed

Competition History

Vintage and Novice CF wins
Performance Data

• FF

• TBD lbs

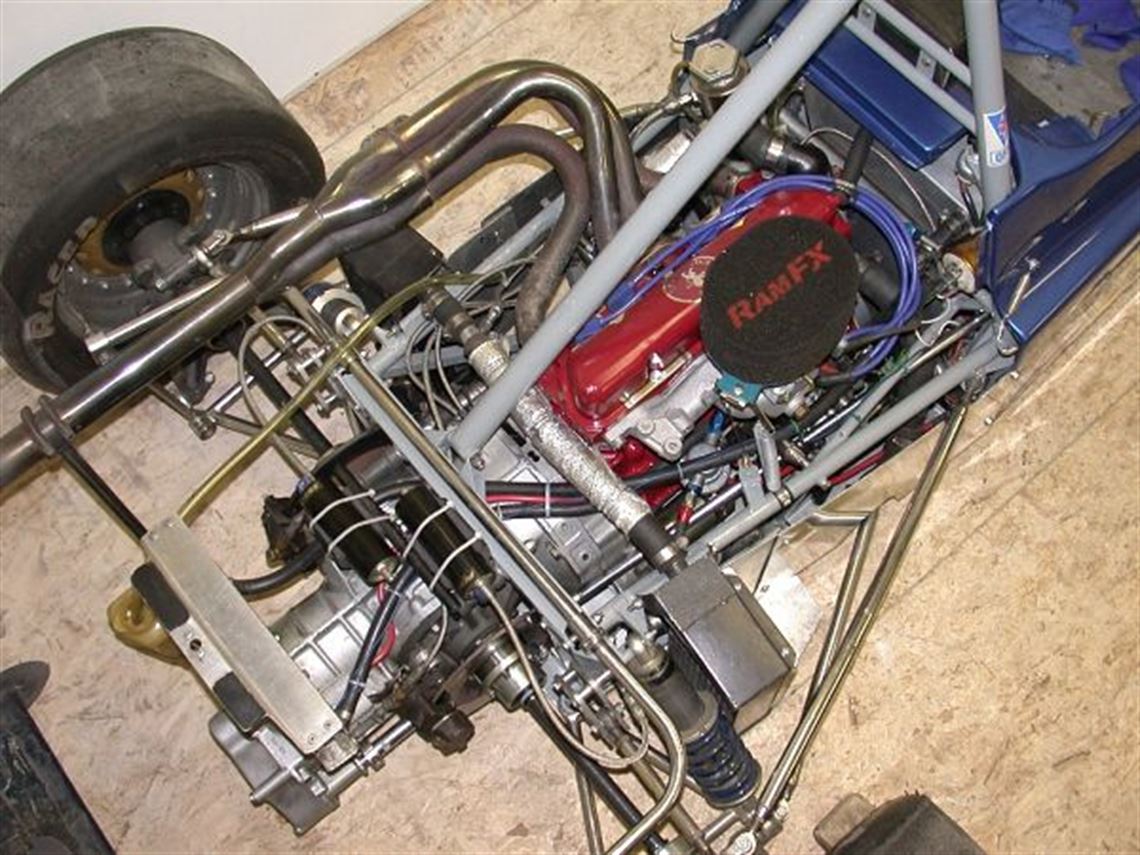

Engine

• Ivey

• Ford

• T340

• 1600cc

• 112HP @ 6200

• 106.8 lb-ft @ 4300

• Weber 32/36 DGV. New butterfly shaft.

• Iron

• 4:1

• dyno only

• uprated crossflow Kent 1600, as supplied new


Fuel System

•

• Marston, for Lola

• mechanical

• jetted for 100LL AV


Oil/Water System

• T342 style

• side

• T340 style

• tail


Electrical System

• Bosch

• none

• Gel cell

• none

• none


Transmission

• Hewland

• Mk9 4 speed

• 11 sets

• H pattern

• N/A

• N/A

• N/A

• Magnesium sideplates, Webster rear cover, annular throwout bearing


Rear End

• 9:31

• open


Body

• fibreglas nose, body, tail

• Blue

• usual rock dings from one season (no crashes)

• slight cracking behind driver, from neck collar

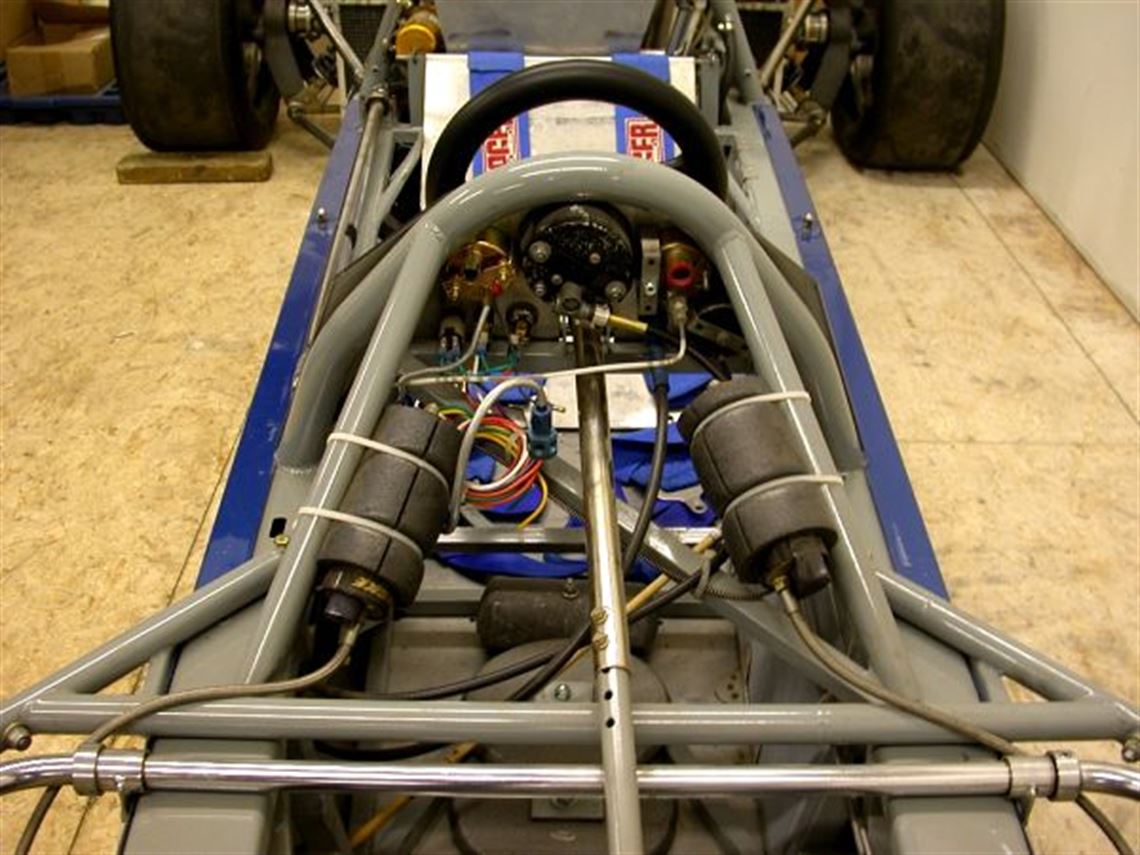

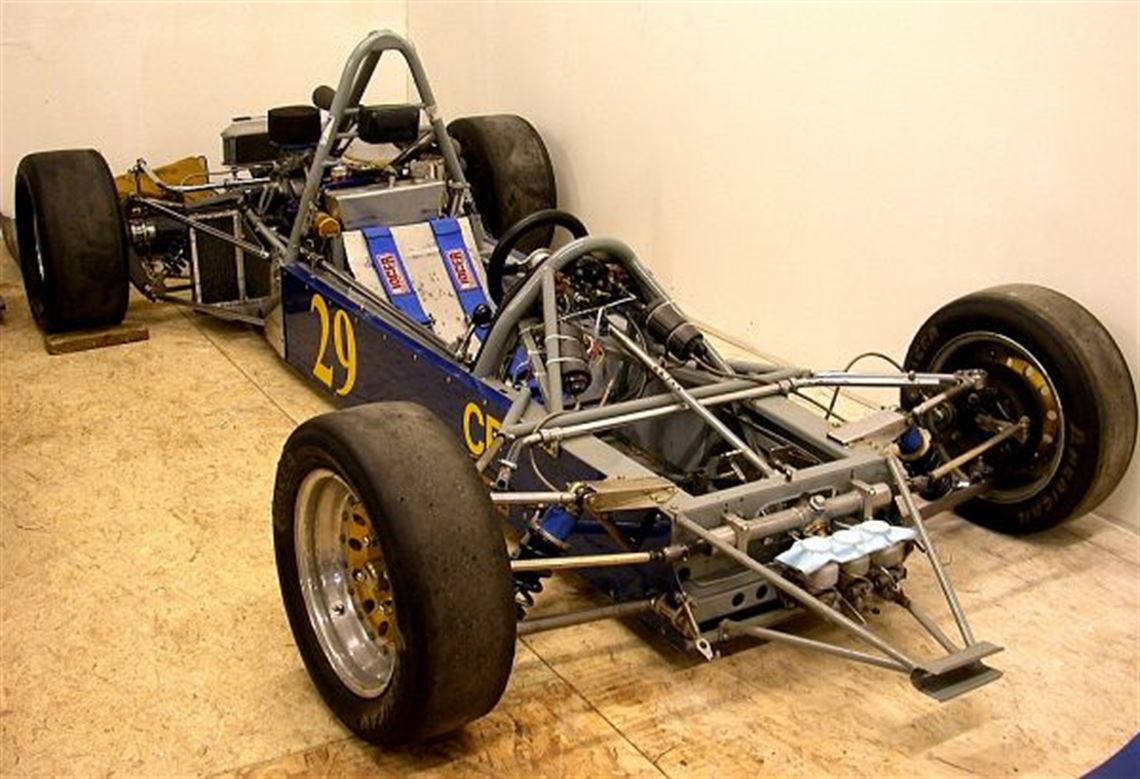

Chassis

• spaceframe

• Lola

• epoxy

• good

• Double A-arm, chrome, repair welding to one arm, original configuration

• Five link with magnesium uprights, original configuration

• Penske 8100 series with remote reservoirs. A/C+ front, A/C rear

• Discs with Lockheed LD19 calipers and new Tilton masters

• Lola rack, rebuilt and snug

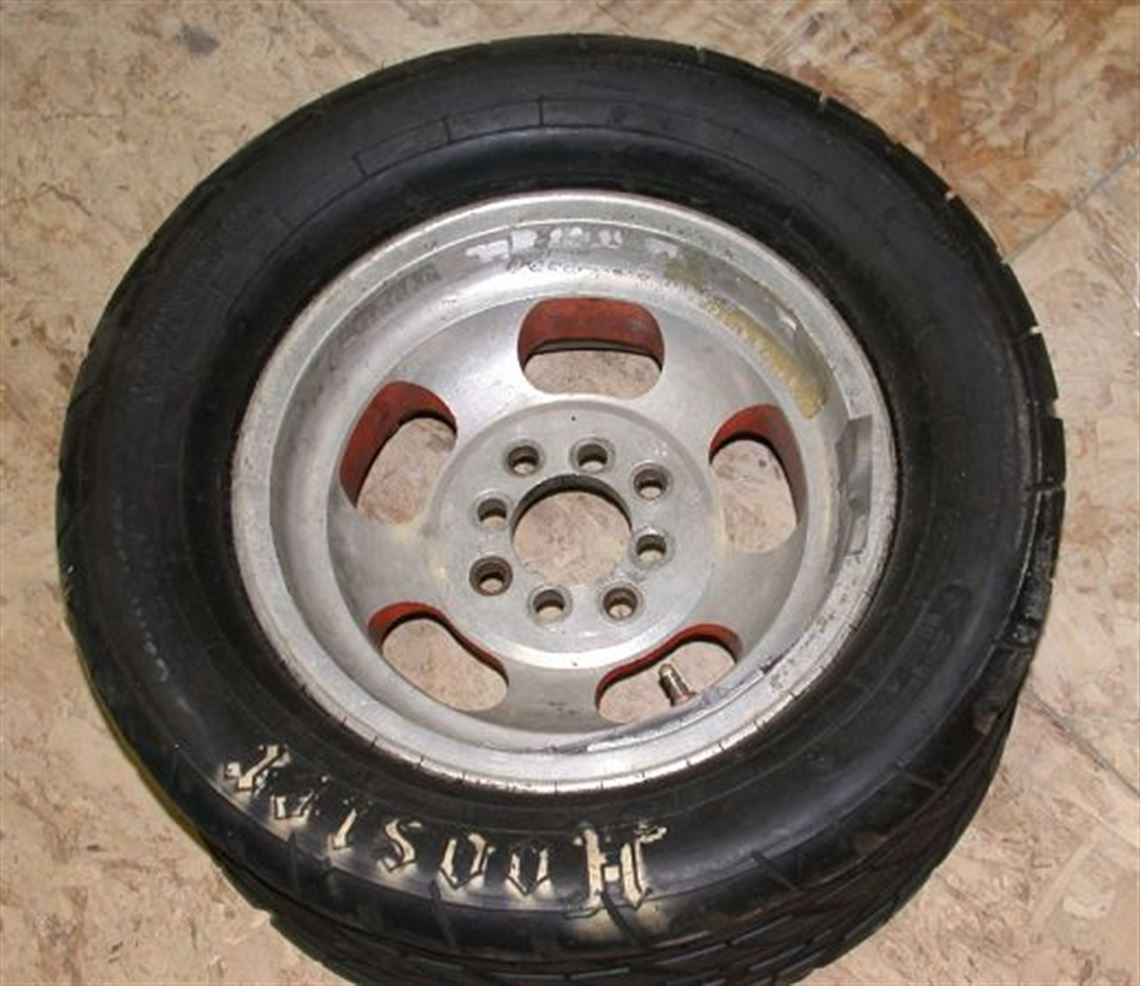

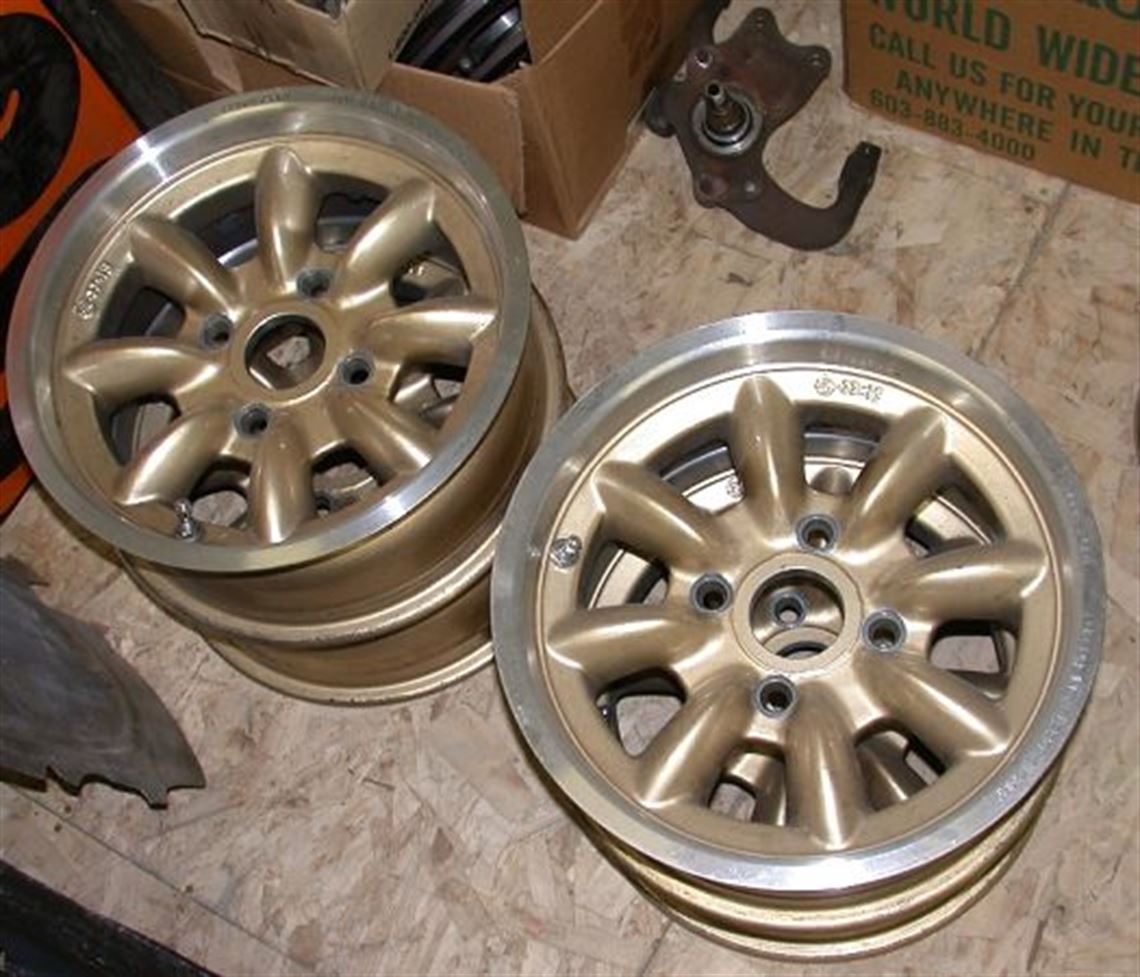

• 1 set Duralights, 1 set Panasports, 1 set original slot mags

• used rains and slicks

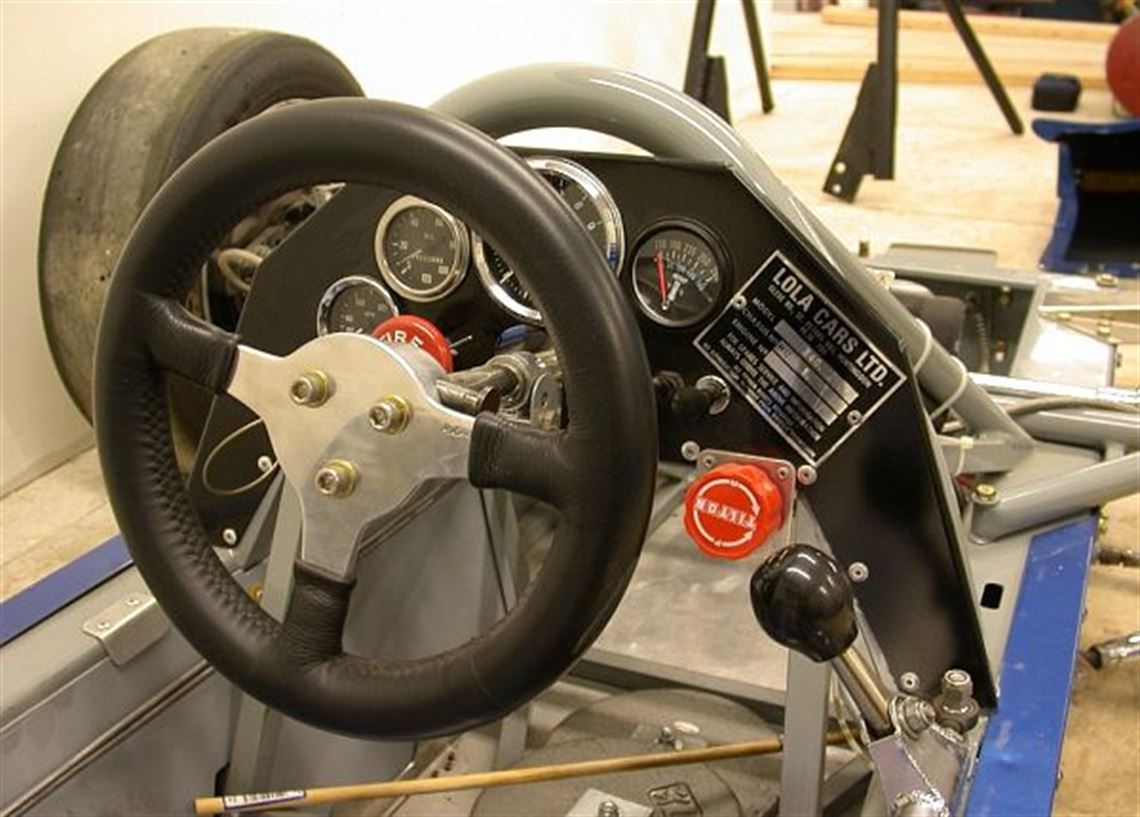

Interior

• Phoenix, recharged 2001

• 5 point

• Original, except H2O temp. Original available for repair.

• Original style Motolita

• Excellent, but no seat bucket


Spares

• Numerous, send for list

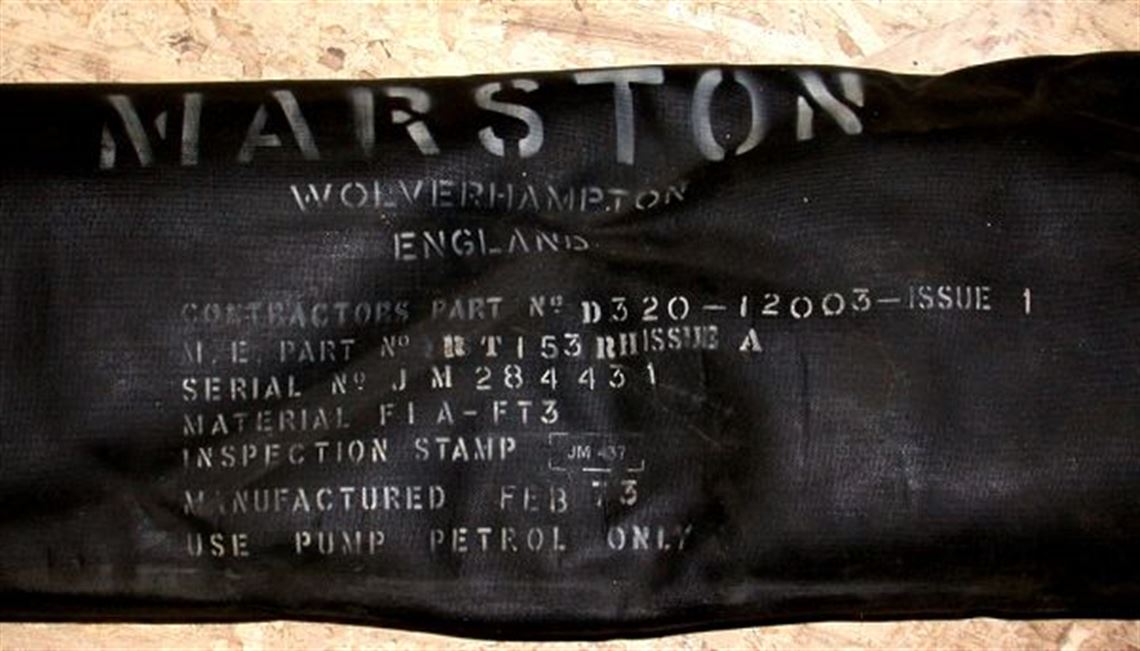

• Rare right hand endurance fuel cell
